Product Overview
Features
Extend the Runtime of SV-Series UPS Systems

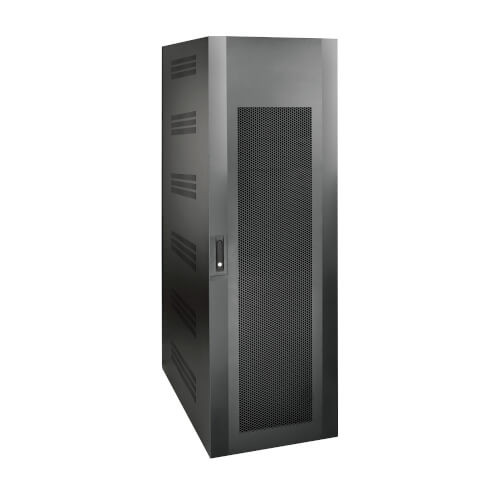

Tripp Lite’s BP240V370 external backup battery pack extends runtime for SV-Series UPS systems. It consists of a battery cabinet and sealed lead acid batteries. Up to three external battery pack cabinets may be connected in parallel to increase runtime.
Enjoy Compatibility with SV-Series UPS Systems
The BP240V370 external UPS battery pack uses a +/- 120V DC configuration and must be hardwired to a compatible UPS. Circuit breakers provide overcurrent protection. The BP240V370 is compatible with Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.
Maintain a Uniform Look in Network Environments
Made of powder-coated steel, the battery cabinet is designed to match the SV-Series UPS systems to keep a consistent look in your server room or data center. The cabinet door is lockable to control access to batteries. The top of the cabinet has conduit knockouts for user-supplied power output cables. Front and rear vents allow the free flow of warm air out of the cabinet, and appropriate spacing provides ventilation between individual batteries.
Comply with TAA Requirements
The BP240V370 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty
The BP240V370 is backed by a one-year limited warranty, ensuring reliability and performance.
System Requirements
- Compatible Tripp Lite SV-Series UPS System
Package Includes
- BP240V370 External Battery Cabinet with battery cable links and breakers and 40 x 100Ah batteries palletized separately
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332236432 |
INPUT
| Input Phase | 3-Phase |
BATTERY
| Expandable Battery Runtime | Multiple battery packs can be daisy-chained to the UPS for extended runtime |
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | +/- 120VDC |
| UPS Connection | Hardwire (contractor supplies wiring - see Owner's Manual for requirements and installation information) |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Tower |
| Shipping Dimensions (hwd / in.) | 80.31 x 28.74 x 48.00 |
| Unit Dimensions (hwd / in.) | 78.94 x 25.47 x 43.3 |
| Unit Weight (lbs.) | 3218 |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
