Description

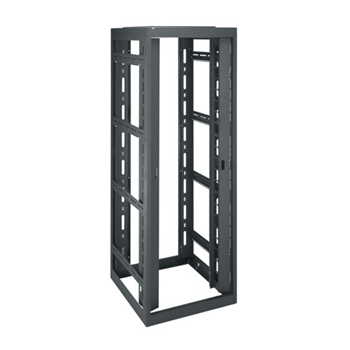

Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30” wide footprint for abundant internal cable space and can accommodate 19” panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.
- Fully welded construction for strength
- Racks gang together when fully loaded
- Includes pre-installed cable ducts with hinged steel doors and magnetic closures
- Cable duct is factory mounted in front, can also be mounted to rear
- Cable ducts accommodate copper and fiber cables equally well
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Includes 100 rack screws
- Includes a MW-10FT
Characteristics & Features
Available Internationally No
Gangable Yes
Material Steel
Product Configuration Frame Only
Rack Rail Type 10-32
Rear Door No
Seismic Rated Yes
Weight Capacity 10,000 lbs (4,535.92 kg)
Certifications & Warranties
ASCE Number 7-10
Certifications
- ASCE
- Greenguard
- LEED Contribution
- OSHPD
- UL Listed
OSHPD Number
96-967 Seismic Load Capacity 755
UL Listing Number E173107
UL Standards Tested UL 1678
For specific product details, please view the product catalog below. Find the product series page and read the product attributes.
