Product Overview

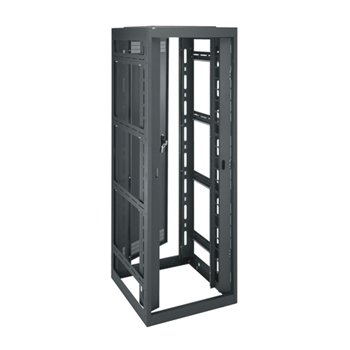

Purpose-built to support high-density cable management, the DRK series rack enclosures has a 30” wide footprint for abundant internal cable space and can accommodate 19” panel width equipment. Specify a DRK for use in network patching and other cable-heavy applications, and where seismic certification and open or removable sides are required or preferred.

Fully welded construction for strength
Racks gang together when fully loaded
Includes pre-installed cable ducts with hinged steel doors and magnetic closures
Cable duct is factory mounted in front, can also be mounted to rear
Cable ducts accommodate copper and fiber cables equally well

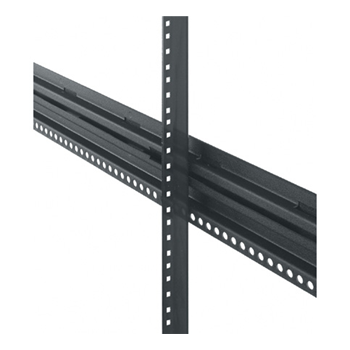

Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
Includes 100 rack screws
Includes partially vented locking-rear door
Includes a MW-10FT

Characteristics & Features

Available Internationally No

Gangable Yes

Material Steel

Product Configuration Frame Only

Rack Rail Type 10-32

Rear Door Yes

Seismic Rated Yes

Weight Capacity 10,000 lbs (4,535.92 kg)

Certifications & Warranties

ASCE Number 7-10

Certifications

ASCE
Greenguard
LEED Contribution
OSHPD
UL Listed

OSHPD Number 96-967

Seismic Load Capacity 755

UL Listing Number E173107

UL Standards Tested UL 1678

For specific product details, please view the product catalog below. Find the product series page and read the product attributes.

Product Overview

Fully welded construction for strength
Racks gang together when fully loaded
Includes pre-installed cable ducts with hinged steel doors and magnetic closures
Cable duct is factory mounted in front, can also be mounted to rear
Cable ducts accommodate copper and fiber cables equally well
Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
Includes 100 rack screws
Includes partially vented locking-rear door
Includes a MW-10FT
