Description

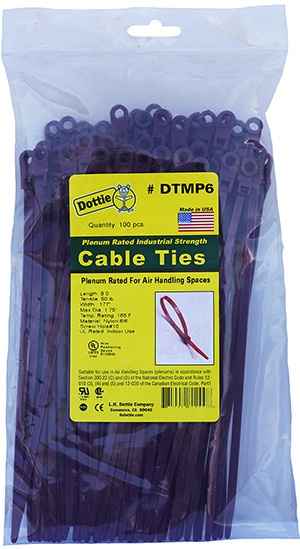

8'' Air Handling Cable Tie w/ Mounting Hole
Air Handling Cable Ties are used for air handling spaces above drop ceilings and below raised flooring as well as Plenums. They utilize a screw or rivet to mount the cable tie to a surface before final assembly. Suitable for use in Air Handling spaces in accordance with Section 300.22(C) and (D) of the National Electrical Code and Rules 12-010 (3), (4), and (5) and 12-020 of the Canadian Electrical Code, Part 1
Specifications
Physical Characteristics
Type
Mounting Hole Cable Tie
Screw Size
#10
Bundle Diameter (in)
Min: 0.12'' - Max: 1.85''
Length (in)
7.87''
Width (in)
0.19''
Material
Nylon 6/6
Color
Red
Screw Holes
0.20''
Lock Mechanism
Nylon Pawl
Packaging Details
Standard Qty
100
Master Qty
1000
Price Per
100
Package Length
4.70
Package Width
11.20
Package Height
0.50
Package Weight
0.35
Performance Data
Applications
Used to Bundle, Secure and Identify
Special Features
Angled Tip, Rounded Edges, Superior Locking Power, Tough Nylon 6/6, Low Smoke Generation, Low Heat Release
Tensile Strength
50 lb/f
Certifications
RoHS Compliant
Yes
Industry Standards
UL Recognized Component
Meets/Exceeds
ASTM D638
