Description

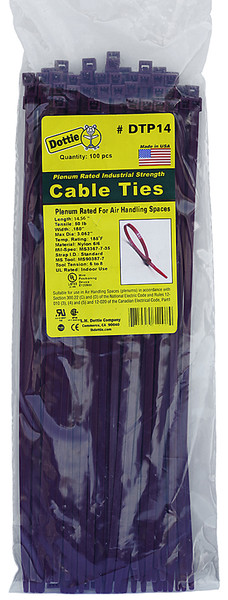

CLOSE OUT 14'' Air Handling Cable Tie
Air Handling Cable Ties are used for air handling spaces above drop ceilings and below raised flooring as well as Plenums. They are suitable for use in Air Handling spaces in accordance with Section 300.22(C) and (D) of the National Electrical Code and Rules 12-010 (3), (4), and (5) and 12-020 of the Canadian Electrical Code, Part 1.
Specifications
Physical Characteristics
Type
Air Handling Cable Tie
Bundle Diameter (in)
Min: 0.12'' - Max: 4.02''
Length (in)
14.57''
Width (in)
0.19''
Material
Nylon 6/6
Color
Red
Lock Mechanism
Nylon Pawl
Packaging Details
Standard Qty
100
Master Qty
5000
Price Per
100
Package Length
14.90
Package Width
5.90
Package Height
1.10
Package Weight
0.55
Performance Data
Applications
Used to Bundle, Secure and Identify
Special Features
Angled Tip, Rounded Edges, Superior Locking Power, Tough Nylon 6/6, Low Smoke Generation, Low Heat Release
For Use With
Air Handling Spaces and Plenums
Tensile Strength
50 lb/f
Certifications
RoHS Compliant
Yes
Industry Standards
Plenum Rated
Meets/Exceeds
Section 300.22 (C) and (D) Of the NEC For Use In Air Handling Spaces, Type 21 AH-2; ASTM D638
