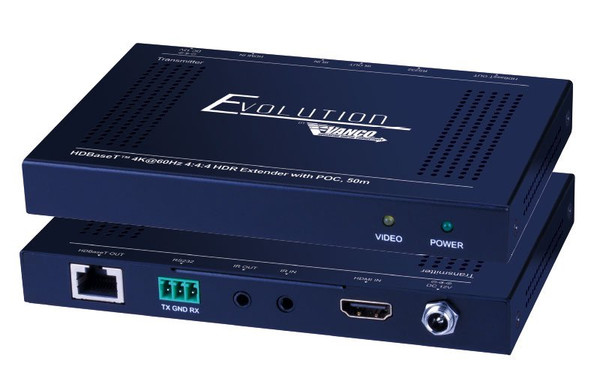

Product Overview
- Features the latest HDBaseT Technology, optimized for whole-home or commercial distribution of high definition signals at much greater distances of standard HDMI cables
- Transmission Range: Extends 4Kx2K@60Hz, 4:4:4 with HDR up to 164ft/50m over a single Cat5e/6 cable and 1080p@60Hz up to 230ft/70m
- Features Power over Cable technology (PoC) which transmits power over Cat5e/6, allowing for either Transmitter or Receiver to be powered without the use of a power supply
- Virtually Lossless Compression retains high end audio and video quality
- Bi-directional IR and RS232 control
- Features Auto EDID and EQ Management for plug and play installation
- HDCP 2.2 compliant and backward compatible to previous versions
- CEC Support
- Slim and compact design
- Power Supply: DC 12V, 2A
- Dimensions: 146.2mm x 94mm x 17.9mm
Package Contents:
EVEX4K50 (TX & RX)
IR Transmitter (IR TX)
IR Receiver (IR RX)
(2) RS232 Cables (3-pin to DB9)
Mounting Hardware
(1) DC 12V Power Supply
Product Manual
Other Information
Vanco orders are subject to a $150 combined order minimum. Please contact us about possible orders under this amount. Vanco orders over $1500 ship for free.
