Description
Key Features
- Support 4 or 6 channels of additional HDMI outputs
- For use in video walls
- Supports NR6416 & NR12816 network recorders only
- HDMI resolution up to 4K, 3840 x 2160
- H.265 & H.264 standards support
| Video Test Monitor | |
|---|---|
| HDMI Port | Supports 4 or 6 ch |
| HDMI Output 4-ch | Ports HDMI1 & HDMI3: 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz Ports HDMI2 & HDMI4: 4K (3840 x 2160) /60Hz, 4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz |

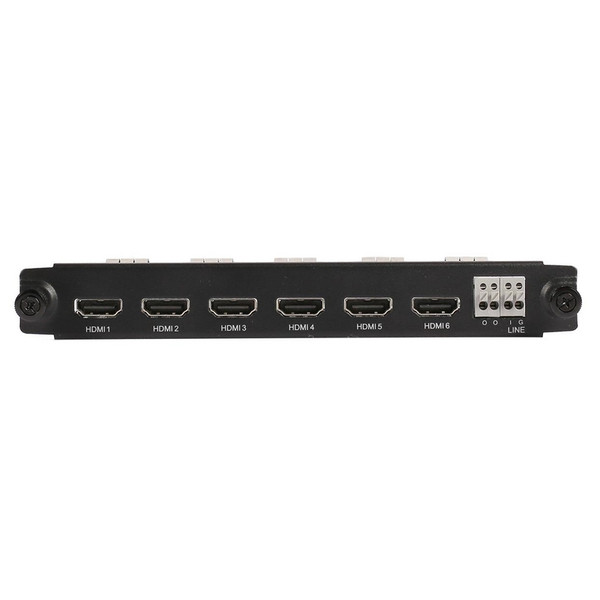

| HDMI Output 6-ch | Ports HDMI1 & HDMI2 & HDMI4: 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz Ports HDMI3 & HDMI5 & HDMI6: 4K (3840 x 2160) /60Hz, 4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz |
| Camera Capability (fps): 4-ch | 8 x 4K @ 30, 16 x 4MP @ 30, 32 x 1080P @ 30, 64 x 720P |
| Camera Capability (fps): 6-ch | 12 x 4K @ 30, 24 x 4MP @ 30, 48 x 1080P @ 30, 96 x 720P |
| Multi-window | 1/3/4/5/6/7/8/9/16 |
| Working Humidity | 10% ~ 90% |
| Weight | 1 Kg (2.2 lb) |
