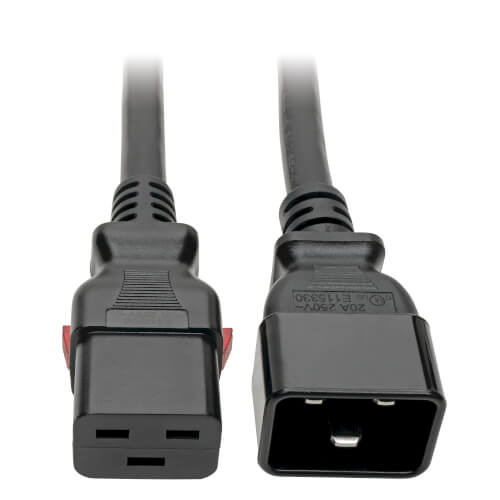

Tripp-Lite P036-L06 Power Extension Cord

$25.99
SKU:
P036-L06
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

C20 to C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This rugged cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a server, router, switch, blade server enclosure or other network device to a UPS system or PDU. It is also an ideal replacement or upgrade from the standard power cord provided by the device's manufacturer. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.
Locking C19 Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking C19 connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
Lifetime Warranty
The P036-L06 is backed by a lifetime warranty, ensuring reliability and performance.

Package Includes

  • P036-L06 C20 to C19 Power Cable, Locking C19 Connector, 6-ft. (1.83 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332218315
Device Compatibility Server; Router; Network Switch; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 20
Voltage Compatibility (VAC) 100-250
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 10.8mm
Number of Conductors 3
Wire Gauge (AWG) 12
Cable Length (ft.) 6
Shipping Dimensions (hwd / in.) 12.80 x 8.59 x 0.50
Shipping Weight (lbs.) 0.98
ENVIRONMENTAL
Operating Temperature Range -4 to 221 F (-20 to 105 C)
Storage Temperature Range -4 to 221 F (-20 to 105 C)
Operating Humidity Range 0-65% RH
Storage Humidity Range 0-65% RH
CONNECTIONS
Side A - Connector 1 IEC-320-C20
Side B - Connector 1 IEC-320-C19 - LOCKING
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug Yes
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL, RoHS, REACH
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
