Tripp-Lite P022-006-GY-HG 6Ft Hospital Medical Power Extension Cord

$8.99
SKU:
P022-006-GY-HG
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

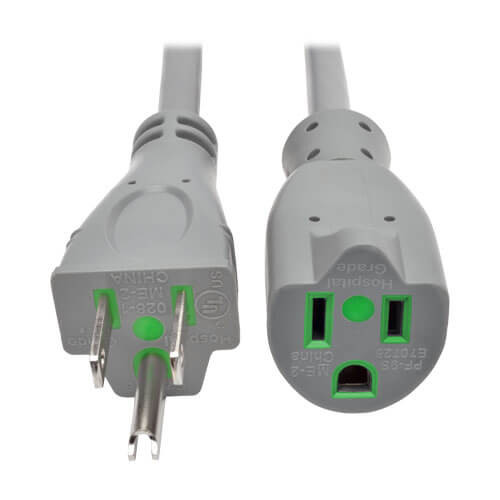

Hospital-Grade Extension Cord is a Safe Solution for Medical Facilities
This hospital-grade power cord is designed for computers, mobile carts, printers, scanners, monitors and other compatible hospital equipment within a healthcare facility. It features a NEMA 5-15R-HG end for connecting to a device and a NEMA 5-15P-HG plug for connecting to a hospital-grade AC power source. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.
Designed and Tested to Strict Hospital-Grade Standards
This cord is tested to ANSI/UL 62 and 817 standards, as well as CAN/CSA C22.2 no. 21 and 49 standards, ensuring it’s a dependable power solution for hospital environments.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This extension cord features a gray SJT jacket and fully molded gray ends. The color-coding allows easy, fast identification in a crowded surge protector and helps prevent the cable from becoming inadvertently disconnected.

Package Includes

  • P022-006-GY-HG Hospital-Grade Extension Cord, 5-15P-HG to 5-15R-HG, 6-ft. (1.83 m), Gray
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332200105
Device Compatibility Mobile Cart; Computer; Printer; Monitor/HDTV; Server; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 13
Voltage Compatibility (VAC) 125
PHYSICAL
Plug Color Gray
Cable Jacket Color Gray
Cable Jacket Material PVC
Cable Jacket Rating FT2
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9mm
Number of Conductors 3
Wire Gauge (AWG) 16
Cable Length (ft.) 6
Shipping Dimensions (hwd / in.) 14.17 x 11.80 x 0.50
Shipping Weight (lbs.) 0.60
ENVIRONMENTAL
Operating Temperature Range -4 TO 140 F (- 20° TO 60°C)
Storage Temperature Range -4 TO 140 F (- 20° TO 60°C)
Operating Humidity Range 20-80% RH
Storage Humidity Range 20-80% RH
CONNECTIONS
Side A - Connector 1 NEMA 5-15P-HG
Side B - Connector 1 NEMA 5-15R
FEATURES & SPECIFICATIONS
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
