Description
Features

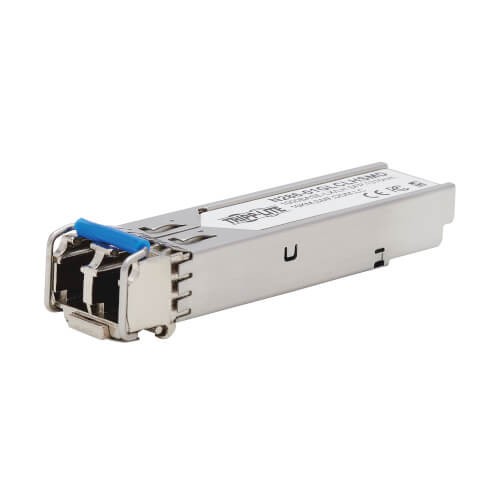

SFP Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP transceiver allows you to connect an 9/125 singlemode fiber optic cable to a 10/100/1000 Mbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco GLC-LH-SMD Transceiver Module
The MSA-compliant N286-01GLCLHSMD functions just like the equivalent Cisco GLC-LH-SMD transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-LH-SMD.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.
System Requirements
- Cisco or other compatible network router, server or switch
Package Includes
- N286-01GLCLHSMD Cisco-Compatible GLC-LH-SMD SFP Transceiver
- Quick Start Guide
Specifications
OVERVIEW
| UPC Code | 037332249289 |
| Brand Compatibility | Cisco |
PHYSICAL
| Unit Dimensions (hwd / in.) | 0.33 x 2.18 x 0.53 |
| Unit Weight (lbs.) | 0.064 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 158 °F (0 to 70 °C) |
| Storage Temperature Range | -40 to 185 °F (-40 to 85 °C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
| Operating Temperature | 32 to 158 °F (0 to 70 °C) |
COMMUNICATIONS
| Network Compatibility | 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit) |
| Wavelength | 1310nm |
| Transmission Distance | 10 km |
CONNECTIONS
| Side A - Connector 1 | SFP (MALE) |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
FEATURES & SPECIFICATIONS
| Optical Port | LC |
| Multi-Source Agreement (MSA) Compliant | Yes |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
