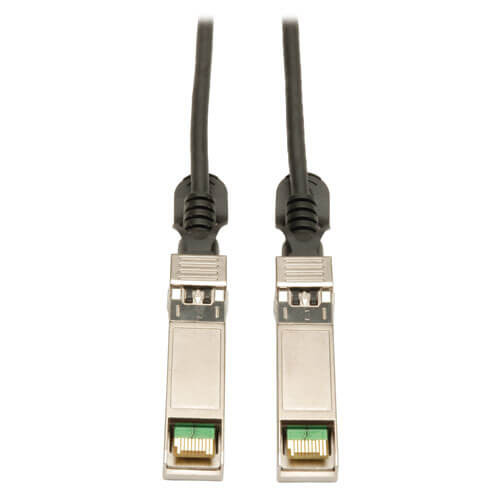

Tripp-Lite N280-20N-BK 0.5M SFP+ 10Gbase-CU Twinax Passive Copper Cable Black 20 inch

Tripp-Lite N280-20N-BK 0.5M SFP+ 10Gbase-CU Twinax Passive Copper Cable Black 20 inch

MSRP: $44.34
$36.99
(You save $7.35 )
SKU:
N280-20N-BK
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

  • 20-in. (50.8 cm) 30 AWG SFP+ high-speed passive copper cable is fully compliant to MSA SFF-8431 specification
  • Supports 1x, 2x, 4x and 8x Fiber Channel data rates
  • Low-power equivalence to Cisco SFP-H10GB-CU1-5M
  • Ideal for 10G Ethernet and Fibre Channel applications
  • 100-ohm twinaxial cable with die-cast metal shells and pull-tab latches

System Requirements

  • Conforms to SFF-8431 standards and can be used with manufacturers' equipment open to third-party cables, including ARISTA, BROADCOM, CISCO, DELL, EMC, EMULEX, EXTREME, FINISAR, IBM, JUNIPER, QLOGIC and VOLTAIRE
  • Confirmed equipment list (with updated firmware and software): CISCO NEXUS, CISCO CATALYST, CISCO CATALYST 3750x, CISCO CATALYST 2960, CISCO CATALYST 3500, CISCO CATALYST 3550, CISCO NEXUS 5010, ARISTA 70505-64, QUANTA T3048, EXTREME X250E, JUNIPER EX3200
  • Not compatible with third-party cables: HP, BROCADE

Package Includes

  • N280-20N-BK SFP+ High-Speed Passive Copper Cable, 10 Gbps, 30 AWG, Black, 20-in. (50.8 cm)
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332178213
Product Type Passive
PHYSICAL
Color Black
Cable Jacket Material PVC
Cable Outer Diameter (OD) 4.2mm
Wire Gauge (AWG) 30
Cable Length (ft.) 1.7
Cable Length (in.) 19.68
Minimum Bend Radius 23mm
Shipping Dimensions (hwd / in.) 12.00 x 10.50 x 0.50
Shipping Weight (lbs.) 0.18
ENVIRONMENTAL
Operating Temperature Range 0℃ to +70℃
Storage Temperature Range -20℃ to +85℃
Operating Humidity Range 5% to 85% RH
Storage Humidity Range 5% to 85% RH
COMMUNICATIONS
Network Compatibility 10 Gbps
IEEE Standards Supported 802.3BA
CONNECTIONS
Side A - Connector 1 SFP+ (MALE)
Side B - Connector 1 SFP+ (MALE)
STANDARDS & COMPLIANCE
Certifications RoHS compliant
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
