Description

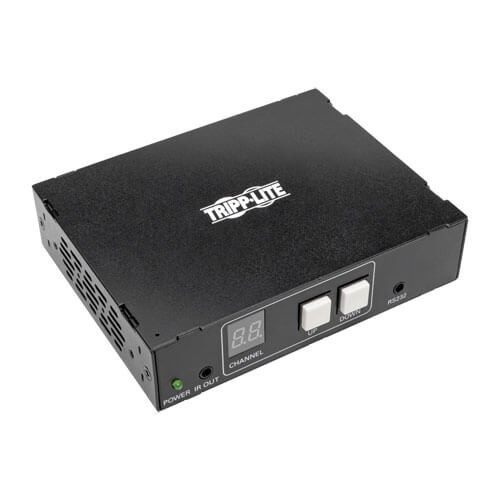

Distributes Component Video, Stereo Audio, Serial and IR Control Signals over Cat5/6 Cabling
- Converts audio and video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away
- Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch
- HDMI output for connecting a local display
Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
- Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
- IGMP-enabled switches allow centralized control over which sources show on which displays
- Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
Enhanced Technical Features
- Supports video resolutions up to 1080i
- Uses H.264 video compression standard
- Transmits on 20–60 kHz IR frequency
- Sends IR control signals that control a source from a remote display
- Supports RS-232 serial baud rates up to 57600 Bps
- HDCP and 3D compatible
Plug-and-Play Functionality
- Plug and play—no software or drivers required
- Hardware included for mounting on wall, rack or pole
- Compatible with all Tripp Lite B160-Series A/V over IP receivers
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Transmitter unit
- External power supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2A)
- Plug adapters for North America, U.K., Europe and Australia
- IR-Out cable
- 3.5 mm to DB9 adapter cable (M/F)
- Mounting hardware
- Owner’s manual
OVERVIEW
| UPC Code | 037332196705 |
| Product Type | Transceiver |
| Technology | Component; IR; A/V over IP; Cat5/5e; Cat6 |
VIDEO
| Max Supported Video Resolution | 1920x1080 (1080i @ 60Hz) |
| Max 1280 x 720 (720p) Range (ft) | 328 |
| Transmitter Video Input | Component (RCA) |
| Transmitter - Number of Video Outputs | 1 |
| Transmitter - Local Display Output | HDMI |
| Range Extension using other Tripp Lite product | 328ft |
| Recommended Cabling | N202-Series Cat6 Patch Cable |
| Other Tripp Lite product used to extend range | network switch |
| HDR Support | No |
| 3D Video Supported | Yes |
| Maximum Signal Range (ft) | 328 |
AUDIO
| Audio Input | RCA (x2) Stereo |
| Audio Specification | Stereo Audio |
POWER
| Power Source Type | AC Adapter |
| AC Plug Type | NEMA 1-15P; BS1363; CEE 7/16 Schuko; AS/NZS 3112 |
| Power Source | Unit (Included) |
| Power Over Cable (PoC) Support | No |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50-60Hz / 1.0A |
| External Power Supply Output Specs (V / A) | 5V/2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.4 |
| DC Barrel Plug | OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve |
| Power Consumption (Watts) | 7.2 |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | RJ45 Output (Green / Power, Orange / Signal), Channel Signal (Red), Power (Green) |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| Included Mounting Accessories | Wallmount |
| Number of Displays | 1 |
| Optional Mounting Accessory Notes | Can DIN Mount using Tripp Lite Bracket B110-DIN-02 |
| Form Factor/Mounting Options | Box; Wall-mount |
| Rackmountable | Yes |
| Unit Dimensions (hwd / in.) | 1.2 x 5 x 3.9 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.2 |
| Housing | Metal |
ENVIRONMENTAL
| Operating Temperature Range | 14 to 167 F (-10 to 75 C) |
| Storage Temperature Range | -4 to 176 F (-20 to 80 C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
| BTUs | 24.6 BTU/Hr |
COMMUNICATIONS
| Signal Range (ft.) | 328 |
| EDID Compatible | No |
| IR Remote Extension Support | Yes |
| RS-232 Serial Extension Support | Yes |
| Consumer Electronics Control (CEC) Supported | No |
| Latency | 2-3 seconds |
| USB Extension Support | No |
CONNECTIONS
| Number of Ports | 9 |
| Side A - Connector 1 | (5) RCA (FEMALE) |
| Side B - Connector 1 | HDMI (FEMALE); RJ45 (FEMALE) |
FEATURES & SPECIFICATIONS
| Driver Required | No |
| Recommended Category Cable | N202-Series Cat6 Patch Cable |
| 10/100 Ethernet Extension Support | No |
| Built-In Equalizer | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
| External Power Supply Certifications | BSMI; CB; CE; FCC; GS; PSE; RCM; UL; cUL |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
