Tripp-Lite B132-002A-2 VGA + Audio over Cat5 Extender 2-Port Transmitter

MSRP: $132.86
$121.99
(You save $10.87 )
SKU:
B132-002A-2
Shipping:
Calculated at Checkout
Tripp-Lite B132-002A-2 VGA + Audio over Cat5 Extender 2-Port Transmitter

Product Overview

Features

  • Splits a single VGA Video and Audio signal into 2

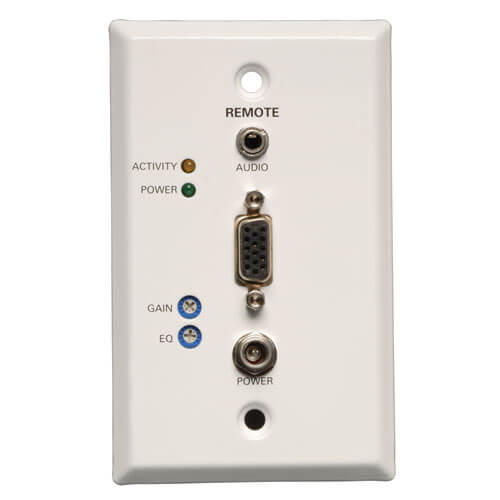

  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • Support for video resolutions up to 1920 x 1440 (60Hz)
  • EDID copy feature ensures optimal display compatibility
  • Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location
  • A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted.
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements



Package Includes

  • 2 Port Extender/Splitter local (Transmitter) unit
  • Mounting hardware
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
  • Owner's Manual
TAA compliant RoHS compliant

Specifications

OVERVIEW
UPC Code 037332178411
Product Type Transceiver
Technology VGA/SVGA; Stereo Audio; Cat5/5e; Cat6
VIDEO
Max Supported Video Resolution 1920x1440 @ 60Hz
Max 720P Range (ft) 500
Max 1080P Range (ft) 500
Max 1280 x 720 (720p) Range (ft) 500
Max 1920 x 1080 (1080p) Range (ft) 500
Max 1920 x 1200 Range (ft) 500
Transmitter Video Input VGA
Transmitter - Number of Video Outputs 2
Range Extension using other Tripp Lite product 1000ft @ 1024 x 768 (60Hz) 500ft @ 1920 x 1440 (60Hz)
Recommended Cabling Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
Other Tripp Lite product used to extend range B132-110A
HDR Support No
3D Video Supported No
Maximum Signal Range (ft) 1000
Maximum Signal Range Details
1000 ft @ 1024 x 768 (60Hz)
500 ft @ 1920 x 1440 (60Hz)
AUDIO
Audio Input 3.5mm
Audio Specification Stereo Audio
POWER
Power Source Type AC Adapter
AC Plug Type NEMA 1-15P
Power Source Unit (Included)
Power Over Cable (PoC) Support No
AC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
External Power Supply Input Specs (V / Hz / A) 100-240V / 50-60Hz / 0.5A
External Power Supply Output Specs (V / A) 5V/2A
External Power Supply Cord Length (ft.) 4.5
External Power Supply Cord Length (m.) 1.38
DC Barrel Plug OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
USER INTERFACE, ALERTS & CONTROLS
LED Indicators RJ45: Green (Connection), Orange (Data Transmission)
PHYSICAL
Color Black
Included Mounting Accessories Wallmount
Number of Displays 2
Optional Mounting Accessory Notes Can DIN Mount using Tripp Lite Bracket  B110-DIN-02
Form Factor/Mounting Options Box; Wall-mount
Rackmountable Yes
Shipping Dimensions (hwd / in.) 2.20 x 7.20 x 6.50
Shipping Weight (lbs.) 1.10
Unit Dimensions (hwd / in.) 1 x 2.5 x 3.7
Unit Packaging Type Box
Unit Weight (lbs.) 0.45
Housing Metal
ENVIRONMENTAL
Operating Temperature Range 32 to 122 F (0 to 50 C)
Storage Temperature Range -4 to 158 (-20 to 70 C)
Relative Humidity 10% to 90% RH, Non-Condensing
COMMUNICATIONS
Max 1024 x 768 Range (ft) 1000
Max 480P Range (ft) 1000
Max 1440 x 900 Range (ft) 500
Max 1080i Range (ft) 500
Max 1920 x 1440 Range (ft) 500
Max 480i Range (ft) 1000
Max 640 x 480 Range (ft) 1000
Max 800 x 600 Range (ft) 1000
Max 1600 x 1200 Range (ft) 500
EDID Compatible   Yes
IR Remote Extension Support No
RS-232 Serial Extension Support No
Consumer Electronics Control (CEC) Supported No
USB Extension Support No
CONNECTIONS
Number of Ports 2
Side A - Connector 1 HD15 (FEMALE)
Side A - Connector 2 3.5MM (FEMALE)
Side B - Connector 1 (2) RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Driver Required No
10/100 Ethernet Extension Support No
Built-In Equalizer No
STANDARDS & COMPLIANCE
Certifications Tested to FCC, RoHS, REACH
External Power Supply Certifications FCC; PSE; TUV; UL; cUL
WARRANTY
Product Warranty Period (Worldwide) 1-year limited warranty
