Product Overview
DESCRIPTION

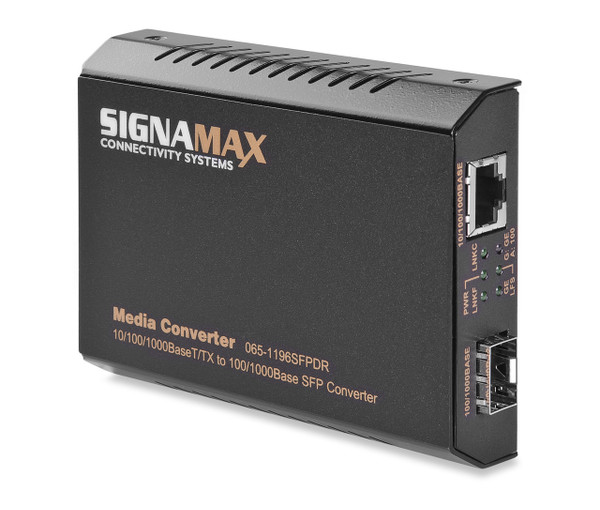

10/100/1000BaseT/TX to Dual-Rate 100Base or 1000Base SFP Media Converter
The Signamax 10/100/1000 to 100/1000 SFP Media Converters provides a flexible and intelligent solution for long distance connections between legacy 10BaseT and 100BaseTX networks and either 1000Base Gigabit Ethernet fiber or 100Base fiber networks. The built-in 10/100/1000 switch enables the fiber cable connection to operate at 1000 Mbps, while remaining completely 1000BaseSX/LX or 100BaseFX/BX standard-compliant for the fiber optic connection.
The dual-rate fiber converter includes the ability to force the RJ-45 port to 100Base or 10Base full or half-duplex modes where required. The Link Fault Signaling provides a means of propagating a link drop on either port of the media converter to the other port, enabling a connected managed switch to see the link drop and respond to it using Spanning Tree Protocol or another recovery scheme.
FEATURES
- Dual-Rate 1000Base or 100Base SFP capability
- Extremely low latency supports larger multi-hop networks
- Extremely high reliability; MTBF of over 212 years
- Gigabit transmission supports 9K bytes jumbo frames
- IEEE 802.3x flow control for full duplex and back pressure for half duplex supported
- DIP switch configuration for link fault signalling, fiber auto/force mode, and SFP speed
- Full wire-speed forwarding rate
- Supports wall mounting, DIN-rail mounting or use with media converter rack mount chassis
