Description
Product Description:

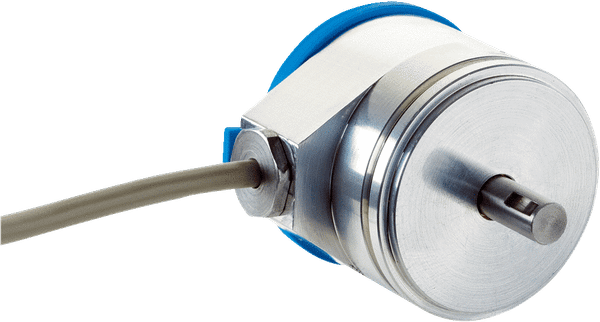

The ACS36 (singleturn) and ACM36 (multiturn) encoder families have an analog interface with a maximum resolution of up to 3723 steps (for singleturn and multiturn). Using the teach-in function on the membrane keyboard, the measuring range can be intuitively programmed directly on the device in just a few clicks. A current signal of 4-20 mA or a voltage signal of 0-10 V is output depending on the device version.
At a glance:
- Compact 36 mm absolute encoder with up to 3723 steps (for singleturn and multiturn)
- Servo flange
- Radial cable outlet
- Analog interface 4 to 20 mA or 0 to 10 V
- Programming via keypad on the encoder
- IP65 protection class
- Operating temperature: –30 °C to +80 °C
Your Benefits:
- Intuitive configuration of the measuring range directly on the device using membrane keyboard (teach-in function) saves time and requires no special expertise.
- The compact size (36-mm format) allows the encoder to be used in confined spaces and thus provides greater freedom for development and machine design.
- The analog interfaces (current/voltage) offer a low-cost solution for detecting the position and path, and thereby help to reduce overall system costs.
Fields of applications:
Measurement of the absolute position in a variety of industries, machines and equipment, for example:
- Automatically guided vehicle systems (AGS)
- Industrial trucks
- Commercial vehicles
- Packaging machinery
- Logistics applications
- Mechanical engineering
- Medical technology
