Product Overview

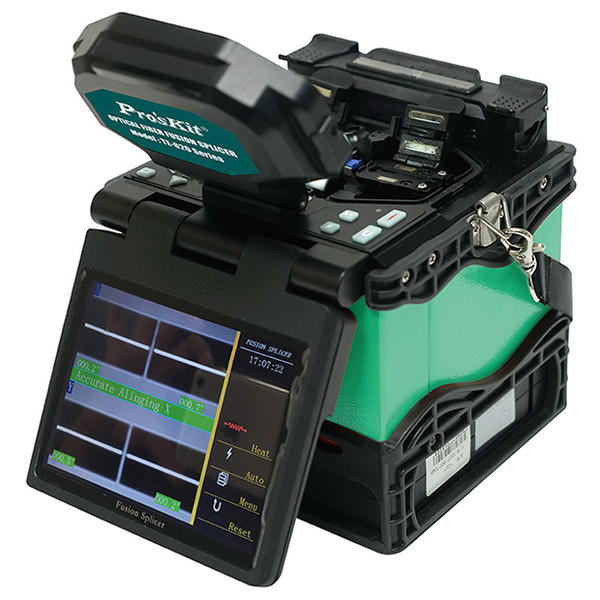

The splicing machine is a new fully-digital design with 5" LCD colorful display, provides the latest core to core alignment technology.
High quality fusion splicing
- Auto/manual/full auto focus functions
- Advanced core to core alignment
- Average splice time: 10 seconds
Heat shrink protection
- Suitable for 20/40/60mm (0.8/1.6/2.4") tubes
- Average tube-heat time: 30 seconds
Hi-resolution output
- 5" colorful LCD display
- Separately X or Y axis views with 300 times magnification
- Cutting-edge technology for image processing
Store 6000 groups of latest splicing results
USB port B-type for updates and result transfers
Removable and Rechargeable Li-ion battery with indicator will provide 180 times splicing and heating
The splicing machine is a new fully-digital design with 5" LCD colorful display, provides the latest core to core alignment technology.
High quality fusion splicing
- Auto/manual/full auto focus functions
- Advanced core to core alignment
- Average splice time: 10 seconds
Heat shrink protection
- Suitable for 20/40/60mm (0.8/1.6/2.4") tubes
- Average tube-heat time: 30 seconds
Hi-resolution output
- 5" colorful LCD display
- Separately X or Y axis views with 300 times magnification
- Cutting-edge technology for image processing
Store 6000 groups of latest splicing results
USB port B-type for updates and result transfers
Removable and Rechargeable Li-ion battery with indicator will provide 180 times splicing and heating
