Description
Overview

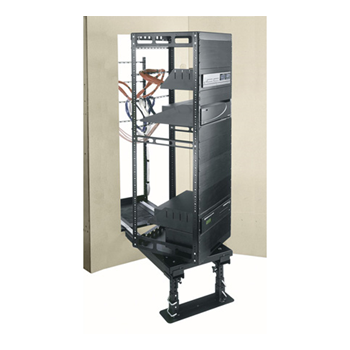

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
Dimensions
Depth: 20 in (50.8 cm)
Extension Length: 25 in (63.5 cm)
Height: 76.44 in (194.16 cm)
Primary Package Weight: 68.5 lbs (31.07 kg)
Rack Units: 41 RU
Usable Depth: 20 in (50.8 cm)
Usable Height: 71.75 in (182.24 cm)
Width: 19.25 in (48.9 cm)
Finish: Black Powder Coat
Material: Steel
Rack Rail Type: 10-32
Weight Capacity: 650 lbs (294.84 kg)
