Product Overview

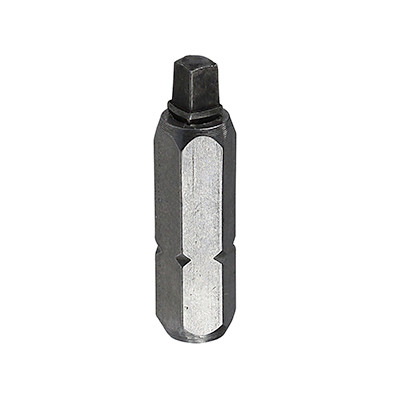

#3 x 1'' Square Drive Insert Bit
Square Drive Insert Bits are manufactured for use with 3-jawed drill chucks and magnetic bit holders. These bits feature a slightly tapered square shape which holds on to the screw for 1-handed driving and deliver high torque while reducing camout. They are heat treated to prevent wear and provide maximum durability.
Specifications
Physical Characteristics
Type
Insert Bit
Drive Type
Square
Size
#3 x 1''
Screw Size
#12-14
Tip Size
#3
Shank Size (in)
1/4''
Length (in)
1''
Shank Shape
Hex
Packaging Details
Standard Qty
10
Price Per
1
Package Length
4.0945
Package Width
2.9921
Package Height
0.2362
Package Weight
0.15
Net Weight
0.015
Performance Data
Rockwell Hardness
58 - 62 HRC
Applications
General Fastening
For Use With
MBH
Certifications
RoHS Compliant
Yes
Industry Standards
ISO-9002
Resources & Downloads
Product Class
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
