Product Overview

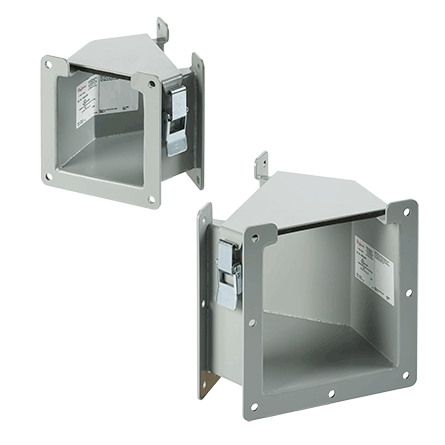

Elbow 45-Degree Top Opening, 2.50x2.50, Gray, Steel

Lay-in Hinged-Cover 45-Degree Elbows are used for continuous wireway runs with 45-degree turns
Because sections of lay-in wireway can be mounted with covers oriented in any direction, three different 45-degree elbows are available
Proper selection allows the user to maintain the same access and thereby preserve the lay-in feature for right-angle installations

PRODUCT ATTRIBUTES

Type: Elbow
Height: 2.5 in / 64 mm
Width: 2.5 in / 64 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Flat
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 2 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Lay-in Hinged-Cover 45-Degree Elbows are used for continuous wireway runs with 45-degree turns. Because sections of lay-in wireway can be mounted with covers oriented in any direction, three different 45-degree elbows are available. Proper selection allows the user to maintain the same access and thereby preserve the lay-in feature for right-angle installations.

Each sealing plate also includes one gasket and one set of screws to join sections.

BULLETIN NUMBER

F10

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
