Description

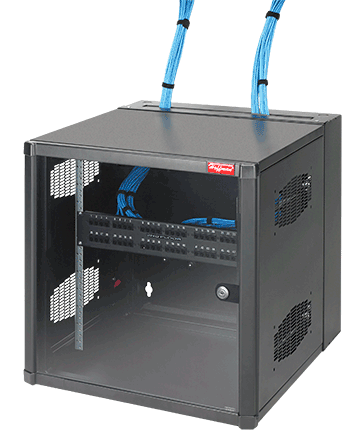

AccessPlus Double-Hinge Type 1 Window Gland, 36.00x28.31x25.10, Black, Steel

Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
Center section easily removed from rear section; tool-less one person installation possible
Self-grounding, plated steel rack angles fully adjustable within center section
Wall section provides cable entry and cable management with knockouts or gland plates
Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
Self-locking center-to-wall section latches in two locations

PRODUCT ATTRIBUTES

Height: 36 in / 914 mm
Width: 28.31 in / 719 mm
Depth: 25.1 in / 638 mm
Protection Rating: NEMA Type 1; IP20
Material: Mild Steel
Vertical Cable Manager Accessory: EWMC36
Rack Units: 19
Load Rating: 300 lbs.
Additional Rack Angle, S=Square Hole T=Tapped Hole: EWMR36T or EWMR36S
Color: Jet Black
Color Code: RAL 9005
Finish: Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 178 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

AccessPlus Cabinets provide security, equipment access, cooling and support for network and other 19-inch rack-mount equipment. The cabinet has three components: front door, center section and wall section.

BULLETIN NUMBER

DWDH1
