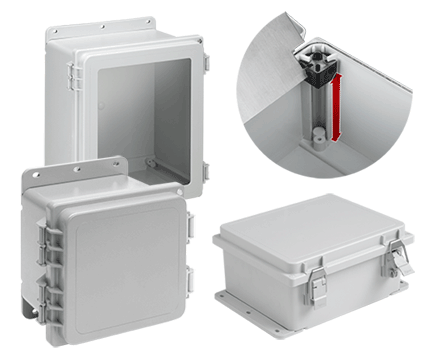

Hoffman A14128PHCW Type 4X PolyPro Polyester Window Cover Enclosure

Hoffman A14128PHCW Type 4X PolyPro Polyester Window Cover Enclosure

$325.00
SKU:
A14128PHCW
Shipping:
Calculated at Checkout
Nema Rating:
Type 4X
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

PolyPro Window Type 4X, 14.02x12.01x8.35, Lt Gray, Polyester

  • Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
  • Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
  • Resists cracking and provides excellent impact resistance
  • Lighter-weight than fiberglass
  • Recyclable
  • Easy, dustless in-field modifications using standard tools
  • Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
  • Removable snap-hinge cover allows for easy access to cover and body for modifications
  • Molded layout grid on inside of body and solid covers assists with component mounting
  • Molded-in embosses for rear panel mounting
  • Optional cover screws included with all models
  • Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
  • Scratch-resistant polycarbonate windows
  • Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)

PRODUCT ATTRIBUTES

  • Height: 14.58 in / 370 mm
  • Width: 12.58 in / 320 mm
  • Depth: 8.35 in / 212 mm
  • Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
  • Material: Polyester
  • Panel Size: 12.75 x 10.88 in / 324 x 276 mm
  • Aluminum Panel: A14P12AL
  • Steel Panel: A14P12
  • Cover Style: Window
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Thickness: 0.13 in / 3.3 mm
  • Weight: 8.3 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Installation Manual / Instruction Sheet

Spec Sheet / Engineering Specification

ADDITIONAL PRODUCT DETAILS

PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.

Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.

BULLETIN NUMBER

PCR
