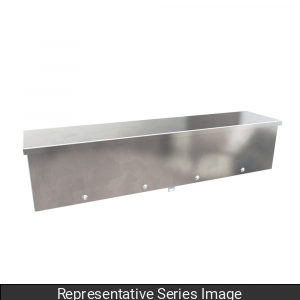

Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.
Standards
UL870 Type 3R
CSA Type 3R
Complies with
NEMA Type 3R
IEC 60529, IP24
Construction
Formed and spot welded from 14 or 16 gauge galvanized steel
Drip shield top design protects the enclosure against rain, snow or sleet
Embossed mounting holes on back of enclosure
Slip on removable front cover is secured with screws
Padlocking hasp
To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover and a ground stud is provided in the enclosure
A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to comply with UL requirements
