Description

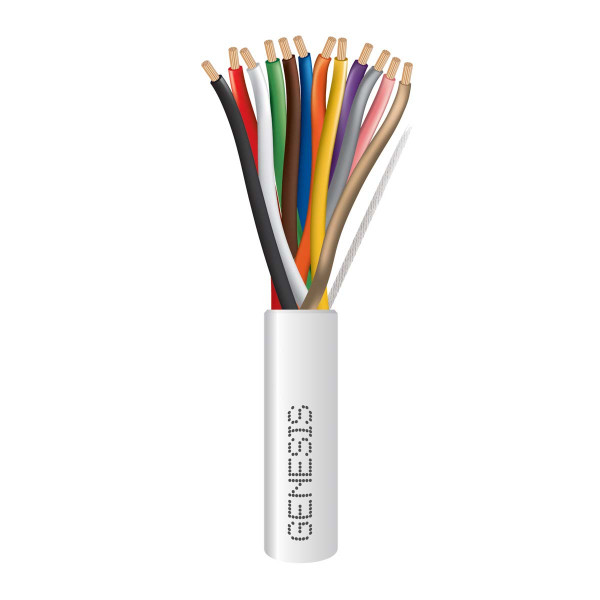

31191012 – 18 AWG 12C STR PLENUM, NATURAL, 1000 FT. REEL
This Genesis® cable features 12 stranded 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
| Cable Rating | Plenum, FT6 |
|---|---|
| Cable Listing | CL3P, FPLP, CMP, FT6 |
| Wire Gauge (AWG) | 18 |
| Solid or Stranded | Stranded |
| Number of Strands | 19 |
| Conductor Material | Bare Copper |
| Number of Conductors | 12 |
| Conductor Insulation Material | Plenum PVC |
| Insulation Colors | Black, Red, White, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.275 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 6.66 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 32.2 pF / ft. |
| Impedance (Nominal) | 58 Ohms |
| Velocity of Propagation | 55% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 13.75 in |
| Package Width | 13.75 in |
| Package Height | 13.25 in |
| Product Weight | 80.2 lb |
