Description
FEATURES

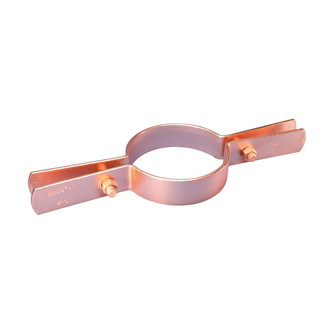

Recommended for suspending vertical type K or L copper tubing risers
Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
Slotted holes make assembly easy, eliminating loose hardware
Bolts are accessible from the front, serrated washer head design means no wrench required on back side for tightening
PRODUCT ATTRIBUTES
Material: Steel
Finish: Copper Electroplated
Pipe Size: 1"
Outer Diameter: 1 1/8"
Hole Size: 7/16"
Length: 1 1/4"
A: 9 1/4"
B: 1"
Screw Diameter: 3/8"
Screw Length: 1 1/4"
Static Load: 120 lb
ADDITIONAL PRODUCT DETAILS
Clamp is fitted for copper tube and should be installed below a coupling or shear lug, with bolts torqued to recommended
value.
