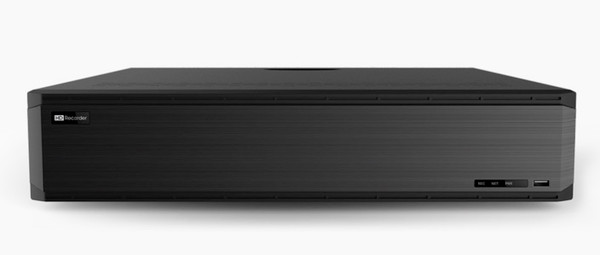

Truview TN-864N2 64-Channel 4K NVR

FEATURES

• Supports 64 CH 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024/960P / 720P / 960H / D1 / CIF IP input H.265S/H.265+/H.265/H.254 high profile compression
• H.265S/H.265+/H.265/H.254 high profile compression
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
• Playback : 16 CH simultaneous playback
• Search : time slice, time, event, tag search and smart search
• Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
• Supports POS information overlay on live view and playback
• Supports RAID0, RAID1, RAID5, RAID6, RAID10
• Express and flexible backup via USB, network and so on
• Pentaplex : preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view
• 4K output, true high resolution display
• Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Supports NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Andriod OS

SPECIFICATIONS

System:

• OS: Embedded Linux

Video:

• Network Input: 64 CH IPC input
• Incoming Bandwidth: 320Mbps
• Outgoing Bandwidth: 320Mbps
• Network Input Resolution: 12MP/ 8MP/ 6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P/960H/D1/CIF
• Output:
• HDMI 1 : 3840 × 2160@60fps / 3840 × 2160@30fps / 1920 × 1080 /1280×1024 / 1024 × 768
• HDMI 2: 1920 × 1080/ 1280×1024 / 1024 × 768
• VGA × 1: 1920 × 1080 / 1280×1024 / 1024 × 768
• Compression: H.265S/ H.265+/ H.265/ H.264
• Multi-screen Display: 1/4/6/8/9/13/16/25/32/36

Audio:

• Network Input: 64 CH IPC audio input
• 2-way Audio: RCA × 1
• Local Output: RCA × 1
• Compression: G.711(A/U)

Record:

• Record Stream: Dual stream recording
• Resolution:
• 12MP@20fps; 8MP/ 6MP/5MP/4MP/3MP/
• 1080P/1280×1024/960P/720P/960H/ D1/CIF@30fps(NTSC)/25fps(PAL)
• Mode: Manual/timed/motion/sensor/POS/AI recording

Playback:

• Simultaneous Playback: Max 16 CH
• Search: Time slice / time / event / tag / smart search
• Smart Search: Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
• Function: Play, pause, FF, FB, digital zoom, etc

Decoding Capability:

• Live View/ Playback: 1CH 12MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P

Alarm:

• Mode: Manual, sensor, motion, exception, smart events
• Input: 8 CH local alarm input; supports IPC alarm input
• Output: 4 CH
• Triggering: Record, snapshot, buzzer, preset, e-mail, etc.

Video Structure Analysis:

• Human/Vehicle Classification: Yes

Other Functions:

• Fisheye: Supports fisheye dewarping via Web Client and mobile APP
• Plate Recognition: Yes

Network:

• Interface: RJ45 10/100/1000 Mbps × 2
• Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, RTSP, HTTP, HTTPs, 802.1x, SNMP, ONVIF, etc.
• Client Connection: Max.20 users access

Mobile Device:

• OS: iOS, Andriod

Storage:

• HDD Interface: SATA×8, up to 8TB per HDD; e-SATA×2
• RAID: RAID0, RAID1, RAID5, RAID6, RAID10

Backup:

• Local Backup: U disk, USB mobile HDD
• Network Backup: Yes

Port:

• USB: USB2.0×2, USB3.0×1
• RS 485: Yes (full-duplex); connect to PTZ or keyboard
• Remote Controller: Yes

Others:

• Warranty: 3 Years
• Power Supply:ATX 250W
• Consumption: ≤ 30W (without HDD)
• Dimensions (mm): 445×436×90 (W×D×H)
• Working Environment: -10 ~ 50 °C, 10% ~ 90% humidity
• Certificate: CE, FCC
• Environmental Protection: Directive EU RoHS, REACH and WEEE
