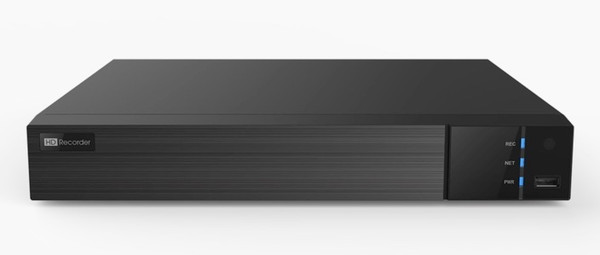

Truview TN-808P8-N 8-Channel 4K NVR

FEATURES

• Support 8CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP video input
• Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
• Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
• Playback : 8CH simultaneous playback
• Search : time slice, time, event, tag, smart search
• Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
• Support POS information overlay on live view and playback
• Express and flexible backup via USB, network and so on
• Pentaplex : preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
• 8 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
• Multi-user online simultaneously
• Authorization management, log view and device status view
• 4K output, true high resolution display
• Support NAT function and QRCode scanning by mobile phones
• Powerful mobile surveillance by smart phones with iOS and Android OS

SPECIFICATIONS

System:

• OS: Embedded Linux

Video:

• Network Input: 8 CH IPC input
• Network Input Resolution: "8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P /960H/D1/CIF"
• Output:
• HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768
• VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768"
• Compression: H.265S /H.265+ / H.265 / H.264

Audio:

• Network Input: 8 CH IPC audio input
• 2-way Audio: RCA × 1
• Local Output: RCA × 1
• Compression: G.711(A/U)

Record:

• Resolution:
• "8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF"
• Frame Rate: NTSC:30fps; PAL:25fps

Playback:

• Simultaneous Playback: Max 8 CH
• Search: Time slice / time / event / tag / smart search
• Smart Search: Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
• Function: Play, pause, FF, FB, digital zoom, etc

Decoding Capability:

• Live View/ Playback: 1CH 8MP / 4CH 1080P

Alarm:

• Mode: Manual, sensor, motion, exception, smart events
• Input: Supports IPC alarm input
• Output: Supports IPC alarm output
• Triggering: Record, snapshot, buzzer, preset, e-mail, etc.

Other Functions:

• Place Recognition: Yes
• Fisheye: No

Video Structure Analysis:

• Human/Vehicle Classification: Yes

Network:

• Interface: RJ 45 × 1 (10/100/1000Mbps)
• Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.
• Incoming / Outgoing Bandwidth: 80/80 (Mbps)
• Client Connection: Max.10 users access

Mobile Device:

• OS: iOS, Andriod

Storage:

• SATA3.0 × 1, max 10T

Backup:

• Local Backup: U disk, USB mobile HDD
• Network Backup: Yes

Port:

• USB: USB 2.0 × 2
• Remote Controller: Optional

PoE:

• PoE Ports: 100M RJ45 × 8
• Standards: IEEE802.3AF/AT
• Output Power: ≤ 96W

Others:

• Warranty: 3 Years
• Power Supply:DC 48V/2.5A
• Consumption: ≤ 10W ( without HDD )
• Dimensions (mm): 300 × 249 × 45( W × D × H )
• Working Environment: -10 ~ 50 °C, 10% ~ 90% humidity
• Certificate: CE, FCC
• Environmental Protection: Complies with Directive EU RoHS, REACH and WEEE
