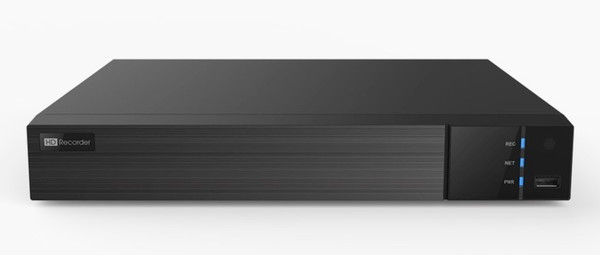

Product Overview
FEATURES
- Supports 16CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
- Playback : 16CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Supports multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Supports POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- 16 PoE network ports; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K ultra high definition output, true high resolution display
- Supports NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
SPECIFICATIONS
System:
- OS: Embedded Linux
Video:
- Network Input: 16 CH IPC input
- Network Input Resolution: "8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P /960H/D1/CIF"
- Output:
- HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768
- VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768"
- Compression: H.265S /H.265+ / H.265 / H.264
- Multi-screen Display: 1/4/6/8/9/13/16/25/32/36
Audio:
- Network Input: 16 CH IPC audio input
- 2-way Audio: RCA × 1
- Local Output: RCA × 1
- Compression: G.711(A/U)
Record:
- Resolution:
- 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF"
- 1080P/1280×1024/960P/ 720P/960H/ D1/CIF@30fps(NTSC)/25fps(PAL)
- Frame Rate: N:30fps; P:25fps
Playback:
- Simultaneous Playback: Max 16 CH
- Search: Time slice / time / event / tag / smart search
- Smart Search: Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
- Function: Play, pause, FF, FB, digital zoom, etc
Decoding Capability:
- Live View/ Playback: 1CH 8MP / 4CH 1080P
Alarm:
- Mode: Manual, sensor, motion, exception, smart events
- Input: Supports IPC alarm input
- Output: Supports IPC alarm output
- Triggering: Record, snapshot, buzzer, preset, e-mail, etc.
Video Structure Analysis:
- Human/Vehicle Classification: Yes
Other Functions:
- Fisheye: No
- Plate Recognition: Yes
Network:
- Interface: RJ 45 1000Mbps × 1
- Protocol: TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, RTSP, HTTP, HTTPs, 802.1x, SNMP, ONVIF, etc.
- Incoming/Outgoing Bandwidth: 96Mbps/96Mbps
- Client Connection: Max.10 users access
Mobile Device:
- OS: iOS, Android
Storage:
- HDD Interface: SATA3.0 × 2, max 10T per HDD
Backup:
- Local Backup: U disk, USB mobile HDD
- Network Backup: Yes
Port:
- USB: USB 2.0 × 2
- Remote Controller: Yes
PoE:
- PoE Ports: RJ 45 100 Mbps × 16
- Standards: IEEE802.3AF/AT
- Output Power: ≤ 150W
Others:
- Warranty: 3 Years
- Power Supply:DC 48V/3.75A
- Consumption: ≤ 10W ( without HDD )
- Dimensions (mm): 380 × 268 × 45 ( W × D × H )
- Working Environment: -10 ~ 50 °C, 10% ~ 90% humidity
- Certificate: CE, FCC
- Environmental Protection: Complies with Directive EU RoHS, REACH and WEEE
RESOURCES
