Product Overview

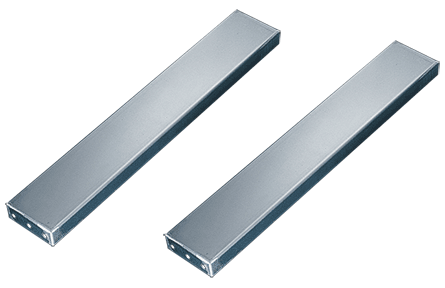

Support Bracket for ProLine Sloped-Front HMI Enclosure, fits 600 wide, Mill, AL
- Bracket is furnished with mounting bolts and seals
PRODUCT ATTRIBUTES
- Height: 1.38 in / 35 mm
- Width: 19.38 in / 492 mm
- Depth: 17.75 in / 451 mm
- Material: Aluminum
- Color: Unpainted
- Finish: Natural Unfinished
- Thickness: 0.125 in / 3 mm
- Weight: 8.7 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS

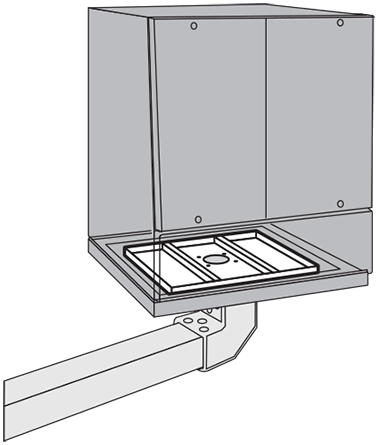

A Support Bracket is required when suspending a 600-mm wide ProLine Sloped-Front HMI Enclosure from above. The rigid bracket mounts inside the enclosure to stiffen its top. It can also be used inside a base for ProLine Sloped-Front HMI Enclosure when mounting from below. Bracket has prepunched holes to fit Compact Series 4 System 80 Flange Couplings as well as Swivel Tilts. Bracket is used as a template to drill holes in the enclosure.
