Product Overview

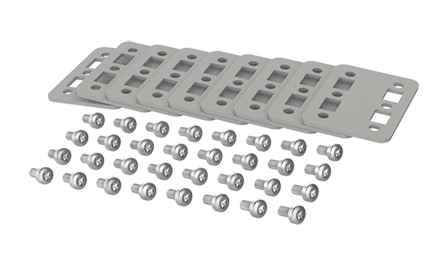

ProLine G2 Joining Kit Support Bracket, 2.76x1.97x.10, Light Gray, Steel
- Provides additional support for joined enclosures
- Includes (8) brackets with (32) M5 Thread Forming, Torx-Head Screws
PRODUCT ATTRIBUTES
- Height: 2.76 in / 70 mm
- Width: 1.97 in / 50 mm
- Depth: 0.1 in / 3 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 12 ga / 2.66 mm
- Bracket Quantity: 8
- Screw Quantity: 32
- Weight: 1.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The ProLine G2 Joining Kit Support Bracket is used in conjunction with the standard joining kit if additional support is desired. The kit includes a quantity of 8, brackets with mounting hardware. The brackets span the joined frames and can be placed as needed.
BULLETIN NUMBER
P40
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
