Product Overview

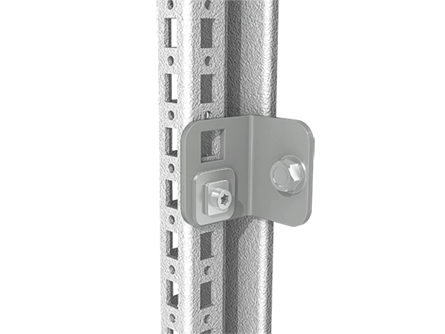

ProLine G2 Panel Support Bracket, 1.77x1.97x1.57, Conductive, Steel
- Conductive finish
- Set of 2 brackets
- Mounting hardware included; attaches to frame using BV-M6 fastener, and subpanel using metric hex bolts
PRODUCT ATTRIBUTES
- Height: 1.77 in / 45 mm
- Width: 1.97 in / 50 mm
- Depth: 1.57 in / 40 mm
- Material: Mild Steel
- Finish: Galvanized
- Color: Unpainted
- Thickness: 11 ga / 3.04 mm
- Weight: 0.6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The panel support bracket can be used in the vertical center sides of the ProLine G2 Mounting Subpanel to provide additional subpanel support.
BULLETIN NUMBER
P40
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
