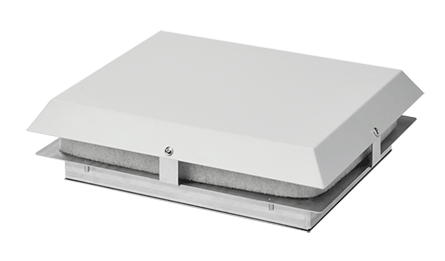

Hoffman HR1616414 HR Top-Mount Filter Fan

Hoffman HR1616414 HR Top-Mount Filter Fan

$992.00
SKU:
HR1616414
Shipping:
Calculated at Checkout
Product Type:
Fans
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

HR16 Top-Mount Filter Fan, 115V 266 CFM, Lt Gray, Steel

  • Enclosure top mounting
  • Bolt in place to ensure a tight seal
  • Terminal block connections
  • Free airflow up to 266 CFM (452 m3/hr.) or 348 CFM (591 m3/hr.)

PRODUCT ATTRIBUTES

  • Height: 12.66 in / 322 mm
  • Width: 15.81 in / 402 mm
  • Depth: 4.18 in / 106 mm
  • Airflow: 266 ft³/min / 452 m³/h
  • Nominal Voltage: 115 V
  • Voltage AC: 100 V
  • Max Current: 0.82 A
  • Operating Temperature: 14 – 131 °F / −10 to 55 °C
  • Material: Mild Steel
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Weight: 15 lb

ADDITIONAL PRODUCT DETAILS

HR Top-Mount Filter Fans bolt in place to the top of enclosure ensuring a tight seal.

BULLETIN NUMBER

MCLF
