Product Overview

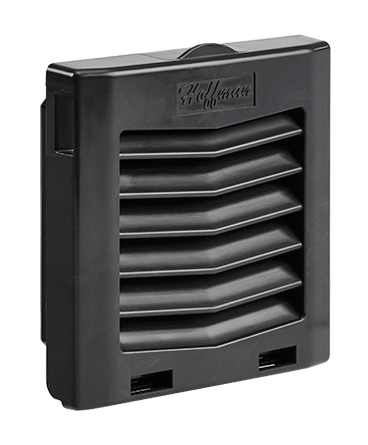

HG Filter Fan Exhaust Grille IP54, fits HF05 fans 5-inch, Black, Plastic

Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Hinged grille remains attached after opening
Size range from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)

PRODUCT ATTRIBUTES

Height: 6.15 in / 156 mm
Width: 6.16 in / 156 mm
Depth: 2.32 in / 59 mm
Material: Plastic
Finish: Smooth Matte
Color: Graphite Black
Color Code: RAL 9011
Weight: 0.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

HG Filter Fan Exhaust Grilles have a unique click-fit design which quickly install into enclosure wall; no tools or fasteners required. Grilles open with the flick of a finger and remains attached after opening for easy access to the filter.

BULLETIN NUMBER

MCLF

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
