Product Overview

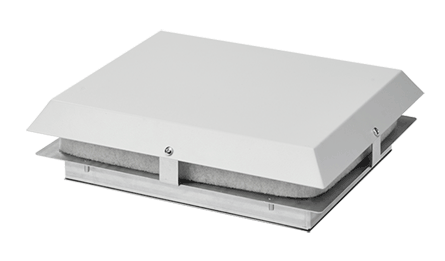

HR16 Top-Mount Filter Fan, 115V 348 CFM, Lt Gray, Steel
- Enclosure top mounting
- Bolt in place to ensure a tight seal
- Terminal block connections
- Free airflow up to 266 CFM (452 m3/hr.) or 348 CFM (591 m3/hr.)
PRODUCT ATTRIBUTES
- Height: 12.66 in / 322 mm
- Width: 15.81 in / 402 mm
- Depth: 4.18 in / 106 mm
- Airflow: 348 ft³/min / 591 m³/h
- Nominal Voltage: 115 V
- Voltage AC: 100 V
- Max Current: 0.93 A
- Operating Temperature: 14 – 131 °F / −10 to 55 °C
- Material: Mild Steel
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 14.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
HR Top-Mount Filter Fans bolt in place to the top of enclosure ensuring a tight seal.
BULLETIN NUMBER
MCLF
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
