Product Information

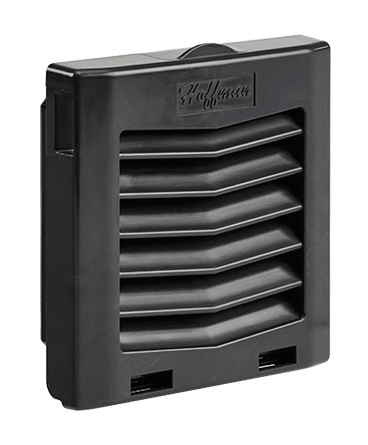

HG Filter Fan Exhaust Grille IP55, fits HF05 fans 5-inch, Black, Plastic
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Hinged grille remains attached after opening
- Size range from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
PRODUCT ATTRIBUTES
- Height: 6.15 in / 156 mm
- Width: 6.16 in / 156 mm
- Depth: 2.32 in / 59 mm
- Material: Plastic
- Finish: Smooth Matte
- Color: Graphite Black
- Color Code: RAL 9011
- Weight: 0.25 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
HG Filter Fan Exhaust Grilles have a unique click-fit design which quickly install into enclosure wall; no tools or fasteners required. Grilles open with the flick of a finger and remains attached after opening for easy access to the filter.
BULLETIN NUMBER
MCLF
