Belden 1673B TIN500 50 Ohm Microwave, RG402 Commercial Non-QPL Product, 19 AWG SPC Coax, Unjacketed - Tin, 500 ft Reel

$5,476.99
SKU:
1673B TIN500
Shipping:
Calculated at Checkout
Color:
Tin
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1673B
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1673B TIN500 50 Ohm Microwave, RG402 Commercial Non-QPL Product, 19 AWG SPC Coax, Unjacketed

50 Ohm, RG-402/U type commercial non-QPL product, 19 AWG solid .036" silver-plated copper conductor, PTFE insulation, copper-tin composite shield (100% coverage), unjacketed.

Ordering Details

  • Manufacturer Part Number: 1673B TIN500
  • Color: Tin
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825120445
  • Manufacturer Footnote: E

Supplied as one 500 ft Reel.

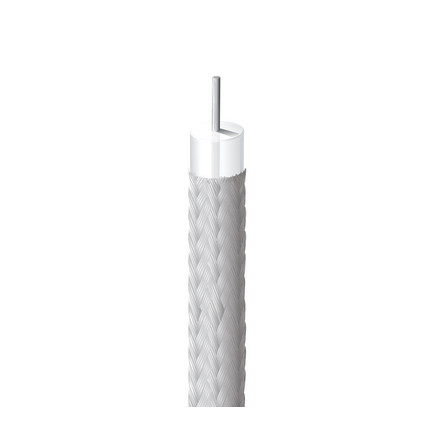

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Microwave

Construction Details

  • RG Type: 402
  • Size: 19; Stranding: Solid; Nom. Diameter: 0.036 in; Material: SC - Silvered Copper
  • Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.116 in (2.95 mm)
  • Layer: 1; Outer Shield Type: Tape; Material: Bare Copper (BC); Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC + Tin Filled); Coverage: 100%
  • Material: No Jacket

Electrical Characteristics

  • Frequency: 500 MHz; Max. VSWR: 1.1:1
  • Frequency: 1000 MHz; Max. VSWR: 1.11:1
  • Frequency: 3000 MHz; Max. VSWR: 1.13:1
  • Frequency: 7000 MHz; Max. VSWR: 1.17:1
  • Frequency: 15000 MHz; Max. VSWR: 1.25:1
  • Frequency: 20000 MHz; Max. VSWR: 1.3:1
  • Frequency: 500 MHz; Nom. Attenuation: 8 dB/100ft; Max. Attenuation: 9.5 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 12 dB/100ft; Max. Attenuation: 14.5 dB/100ft
  • Frequency: 2000 MHz; Nom. Attenuation: 18.1 dB/100ft; Max. Attenuation: 26.5 dB/100ft
  • Frequency: 3000 MHz; Nom. Attenuation: 22.9 dB/100ft; Max. Attenuation: 36 dB/100ft
  • Frequency: 5000 MHz; Nom. Attenuation: 31 dB/100ft; Max. Attenuation: 54 dB/100ft
  • Frequency: 7000 MHz; Nom. Attenuation: 37.8 dB/100ft; Max. Attenuation: 84 dB/100ft
  • Frequency: 10000 MHz; Nom. Attenuation: 46.6 dB/100ft
  • Frequency: 15000 MHz; Nom. Attenuation: 59.1 dB/100ft
  • Frequency: 18000 MHz; Nom. Attenuation: 65.8 dB/100ft
  • Frequency: 20000 MHz; Nom. Attenuation: 70 dB/100ft
  • Frequency: 500 MHz; Max. Power Rating: 600 W
  • Frequency: 1,000 MHz; Max. Power Rating: 401 W
  • Frequency: 2,000 MHz; Max. Power Rating: 268 W
  • Frequency: 3,000 MHz; Max. Power Rating: 211 W
  • Frequency: 5,000 MHz; Max. Power Rating: 157 W
  • Frequency: 7,000 MHz; Max. Power Rating: 129 W
  • Frequency: 10,000 MHz; Max. Power Rating: 105 W
  • Frequency: 15,000 MHz; Max. Power Rating: 83 W
  • Frequency: 18,000 MHz; Max. Power Rating: 74 W
  • Frequency: 20,000 MHz; Max. Power Rating: 70 W
  • Nom. Conductor DCR: 7.9 Ohm/1000ft (26 Ohm/km); Nom. Outer Shield DCR: 4.5 Ohm/1000ft (15 Ohm/km); Nom. Capacitance Cond-to-Shield: 29.5 pF/ft (96.8 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
  • Voltage Rating: 1900 V RMS
  • Electrical Characteristics Notes: VSWR limit is a continuous sloping line from 500 MHz to 20 GHz

Mechanical Characteristics

  • Operating: -70°C To +200°C
  • Installation Min.: 0.125 in
  • Max. Pull Tension: 70 lbs (32 kg)
  • Bulk Cable Weight: 25 lbs/1000ft (37 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
  • European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Commercial non-QPL product

History

  • Update and Revision: Revision Number: 0.436 Revision Date: 11-06-2026
  • Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.

Resources

Belden 1673B Product Information
