Description
Belden 1675A TIN500 Conformable Coax, 50 Ohm, RG-401, 14 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
Conformable Coax, 50 Ohm, RG-401, 14 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield, Unjacketed
Ordering Details
- Manufacturer Part Number: 1675A TIN500
- Color: Tin
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825120544
- Manufacturer Footnote: C E
Supplied as one 500 ft Reel.

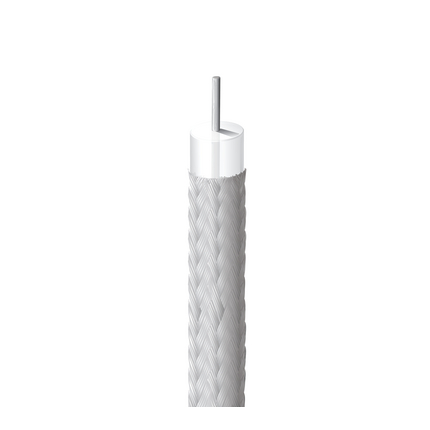

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Microwave and other high frequency applications, Interconnect RF equipment, Radar equipment, Military communications
Construction Details
- RG Type: 401
- No. of Elements: 1; Size: 14 AWG; Stranding: Solid; Nom. Diameter: 0.065 in; Material: SCCS - Silvered Copper Covered Steel
- Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.21 in (5.3 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Bare Copper (BC); Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC + Tin Filled); Coverage: 100%
- Material: No Jacket
- Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)
Electrical Characteristics
- Frequency: 400 MHz; Max. VSWR: 1.10:1
- Frequency: 1000 MHz; Max. VSWR: 1.11:1
- Frequency: 3000 MHz; Max. VSWR: 1.14:1
- Frequency: 7000 MHz; Max. VSWR: 1.21:1
- Frequency: 10000 MHz; Max. VSWR: 1.25:1
- Frequency: 18000 MHz; Max. VSWR: 1.38:1
- Frequency: 400 MHz; Nom. Attenuation: 3.8 dB/100ft
- Frequency: 500 MHz; Nom. Attenuation: 4.4 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 6.8 dB/100ft
- Frequency: 2000 MHz; Nom. Attenuation: 10.4 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 13 dB/100ft
- Frequency: 5000 MHz; Nom. Attenuation: 19 dB/100ft
- Frequency: 7000 MHz; Nom. Attenuation: 22.8 dB/100ft
- Frequency: 10000 MHz; Nom. Attenuation: 28 dB/100ft
- Frequency: 15000 MHz; Nom. Attenuation: 36.6 dB/100ft
- Frequency: 18000 MHz; Nom. Attenuation: 41.0 dB/100ft
- Frequency: 400 MHz; Max. Power Rating: 1,900 W
- Frequency: 500 MHz; Max. Power Rating: 1,665 W
- Frequency: 1,000 MHz; Max. Power Rating: 1,105 W
- Frequency: 2,000 MHz; Max. Power Rating: 733 W
- Frequency: 3,000 MHz; Max. Power Rating: 577 W
- Frequency: 5,000 MHz; Max. Power Rating: 427 W
- Frequency: 7,000 MHz; Max. Power Rating: 350 W
- Frequency: 10,000 MHz; Max. Power Rating: 283 W
- Frequency: 15,000 MHz; Max. Power Rating: 223 W
- Frequency: 18,000 MHz; Max. Power Rating: 200 W
- Nom. Conductor DCR: 2.5 Ohm/1000ft (8.2 Ohm/km); Nom. Outer Shield DCR: 8.6 Ohm/1000ft (28 Ohm/km); Nom. Capacitance Cond-to-Shield: 29.6 pF/ft (97.1 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
- UL Voltage Rating: 30 V RMS; Voltage Rating: 2900 V RMS
- Electrical Characteristics Notes: VSWR limit is a continuous sloping line from 500 MHz to 18 GHz
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -70°C To +200°C
- Stationary Min.: 1.125 in (28.58 mm); Installation Min.: .375 in (9.53 mm); Flexing Min.: 1.125 in (28.58 mm)
- Max. Pull Tension: 122 lbs (55.3 kg)
- Bulk Cable Weight: 81 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
- AWM Compliance: AWM 10245
- European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Commercial non-QPL product
History
- Update and Revision: Revision Number: 0.478 Revision Date: 02-20-2026
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'., C - CRATE REEL PUT-UP.
