Description
Belden 1673A TIN500 Conformable Coax, 50 Ohm, RG-402, 19 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
Conformable Coax, 50 Ohm, RG-402, 19 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield, Unjacketed
Ordering Details
- Manufacturer Part Number: 1673A TIN500
- Color: Tin
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825120414
Supplied as one 500 ft Reel.

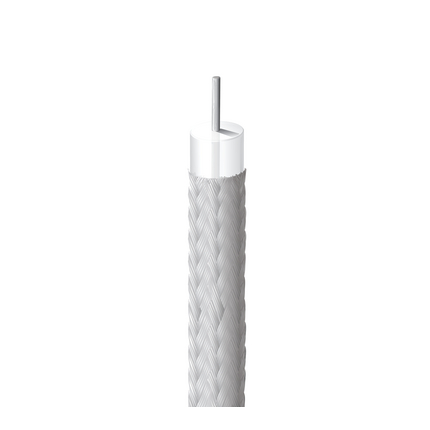

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Microwave and other high frequency applications, Interconnect RF equipment, Radar equipment, Military communications
Construction Details
- RG Type: 402
- Size: 19 AWG; Stranding: Solid; Nom. Diameter: 0.036 in; Material: SCCS - Silvered Copper Covered Steel
- Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.116 in (2.95 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Bare Copper (BC); Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC + Tin Filled); Coverage: 100%; Notes: Diameter: 0.138 inch
- Material: No Jacket
- Overall Cable Diameter (Nominal): 0.138 in (3.51 mm)
Electrical Characteristics
- Frequency: 500 MHz; Max. VSWR: 1.1:1
- Frequency: 1000 MHz; Max. VSWR: 1.11:1
- Frequency: 3000 MHz; Max. VSWR: 1.13:1
- Frequency: 7000 MHz; Max. VSWR: 1.17:1
- Frequency: 15000 MHz; Max. VSWR: 1.25:1
- Frequency: 20000 MHz; Max. VSWR: 1.3:1
- VSWR Table Notes: VSWR limit is a continuous sloping line from 500 MHz to 20 GHz
- Frequency: 500 MHz; Nom. Attenuation: 8.0 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 12.0 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 22.0 dB/100ft
- Frequency: 5000 MHz; Nom. Attenuation: 30.0 dB/100ft
- Frequency: 10000 MHz; Nom. Attenuation: 45.0 dB/100ft
- Frequency: 20000 MHz; Nom. Attenuation: 70.0 dB/100ft
- Frequency: 500 MHz; Max. Power Rating: 600 W
- Frequency: 1,000 MHz; Max. Power Rating: 401 W
- Frequency: 2,000 MHz; Max. Power Rating: 268 W
- Frequency: 3,000 MHz; Max. Power Rating: 211 W
- Frequency: 5,000 MHz; Max. Power Rating: 157 W
- Frequency: 7,000 MHz; Max. Power Rating: 129 W
- Frequency: 10,000 MHz; Max. Power Rating: 105 W
- Frequency: 15,000 MHz; Max. Power Rating: 83 W
- Frequency: 18,000 MHz; Max. Power Rating: 74 W
- Frequency: 20,000 MHz; Max. Power Rating: 70 W
- Nom. Conductor DCR: 20.5 Ohm/1000ft; Nom. Outer Shield DCR: 4.5 Ohm/1000ft (15 Ohm/km); Nom. Capacitance Cond-to-Shield: 29.5 pF/ft (96.8 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
- UL Voltage Rating: 30 V (UL AWM Style 10245); Voltage Rating: 1900 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -70°C to +200°C
- Installation Min.: 0.250 in (6.35 mm)
- Max. Pull Tension: 70 lbs (32 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1581 Horizontal Wire
- AWM Compliance: AWM 10245
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.478 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., V - 250' PUT-UP EXACT LENGTH MAXIMUM OF 3 PIECES, MINIMUM LENGTH 50'. 500' PUT-UP EXACT LENGTH MAXIMUM OF 5 PIECES, MINIMUM LENGTH 50'. 1000' PUT-UP EXACT LENGTH MAXIMUM OF 8 PIECES, MINIMUM LENGTH 50'.
