Belden 1671B TIN500 50 Ohm Microwave, RG405 Commercial non-QPL Product, 24 AWG SPC Coax, Unjacketed - Tin, 500 ft Reel

$5,094.99
SKU:
1671B TIN500
Shipping:
Calculated at Checkout
Color:
Tin
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1671B
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

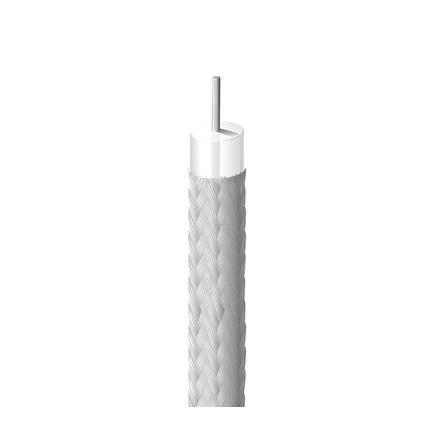

Belden 1671B TIN500 50 Ohm Microwave, RG405 Commercial non-QPL Product, 24 AWG SPC Coax, Unjacketed

50 Ohm, RG-405/U type , 24 AWG solid .020" silver-plated copper conductor, PTFE insulation, copper-tin composite shield (100% coverage), unjacketed.

Ordering Details

  • Manufacturer Part Number: 1671B TIN500
  • Color: Tin
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825120308
  • Manufacturer Footnote: E

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Microwave

Construction Details

  • RG Type: 405
  • Size: 24; Stranding: Solid; Nom. Diameter: 0.02 in; Material: SC - Silvered Copper
  • Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.062 in (1.6 mm)
  • Layer: 1; Outer Shield Type: Tape; Material: Bare Copper (BC); Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC + Tin Filled); Coverage: 100%
  • Material: No Jacket

Electrical Characteristics

  • Frequency: 500 MHz; Max. VSWR: 1.1:1
  • Frequency: 1000 MHz; Max. VSWR: 1.11:1
  • Frequency: 3000 MHz; Max. VSWR: 1.13:1
  • Frequency: 7000 MHz; Max. VSWR: 1.17:1
  • Frequency: 15000 MHz; Max. VSWR: 1.25:1
  • Frequency: 20000 MHz; Max. VSWR: 1.3:1
  • Frequency: 500 MHz; Nom. Attenuation: 15 dB/100ft; Max. Attenuation: 17 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 22.5 dB/100ft; Max. Attenuation: 24.9 dB/100ft
  • Frequency: 2000 MHz; Nom. Attenuation: 32.8 dB/100ft; Max. Attenuation: 36.5 dB/100ft
  • Frequency: 3000 MHz; Nom. Attenuation: 41.2 dB/100ft; Max. Attenuation: 45.7 dB/100ft
  • Frequency: 5000 MHz; Nom. Attenuation: 54.9 dB/100ft; Max. Attenuation: 60.5 dB/100ft
  • Frequency: 7000 MHz; Nom. Attenuation: 66.4 dB/100ft; Max. Attenuation: 72.9 dB/100ft
  • Frequency: 10000 MHz; Nom. Attenuation: 81.2 dB/100ft; Max. Attenuation: 88.7 dB/100ft
  • Frequency: 15000 MHz; Nom. Attenuation: 102 dB/100ft; Max. Attenuation: 110.9 dB/100ft
  • Frequency: 18000 MHz; Nom. Attenuation: 113 dB/100ft; Max. Attenuation: 122.7 dB/100ft
  • Frequency: 20000 MHz; Nom. Attenuation: 120 dB/100ft; Max. Attenuation: 130 dB/100ft
  • Frequency: 500 MHz; Max. Power Rating: 180 W
  • Frequency: 1,000 MHz; Max. Power Rating: 119 W
  • Frequency: 2,000 MHz; Max. Power Rating: 79 W
  • Frequency: 3,000 MHz; Max. Power Rating: 62 W
  • Frequency: 5,000 MHz; Max. Power Rating: 46 W
  • Frequency: 7,000 MHz; Max. Power Rating: 37 W
  • Frequency: 10,000 MHz; Max. Power Rating: 30 W
  • Frequency: 15,000 MHz; Max. Power Rating: 24 W
  • Frequency: 18,000 MHz; Max. Power Rating: 21 W
  • Frequency: 20,000 MHz; Max. Power Rating: 20 W
  • Nom. Conductor DCR: 25.7 Ohm/1000ft (84.3 Ohm/km); Nom. Capacitance Cond-to-Shield: 29.5 pF/ft (96.8 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
  • UL Voltage Rating: 30 V RMS (UL AWM Style 10245); Voltage Rating: 1500 V RMS
  • Electrical Characteristics Notes: VSWR limit is a continuous sloping line from 500 MHz to 20 GHz

Mechanical Characteristics

  • Operating: -70°C To +200°C
  • Installation Min.: 0.125 in
  • Max. Pull Tension: 26 lbs (12 kg)
  • Bulk Cable Weight: 11 lbs/1000ft (16 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
  • European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Commercial non-QPL product

History

  • Update and Revision: Revision Number: 0.426 Revision Date: 11-06-2026
  • Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.

Resources

Belden 1671B Product Information
