Description

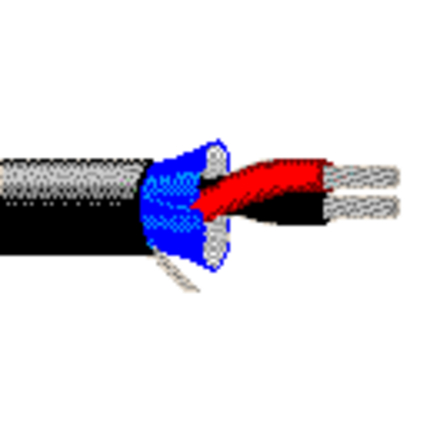

Belden 1508A B59500 Audio Cable, #24-2c, TC, O/A Foil, CM
Audio Cable, CM-Rated, 1-24 AWG stranded tinned copper pair with polyolefin insulation, Beldfoil® shield, drain, PVC jacket
Ordering Details
- Manufacturer Part Number: 1508A B59500
- Color: Black, Matte
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825116721
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.04 in mm; Color Code: Black & Red
- Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+PVC); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.024 in (0.61 mm); Nom. Diameter: 0.131 in
- Overall Cable Diameter (Nominal): 0.131 in
Electrical Characteristics
- Nom. Conductor DCR: 28.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft (190 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 3.3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 20.63 Ohm/1000ft (67.68 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C To +60°C
- Stationary Min.: 1.31 in (33.3 mm); Installation Min.: 1.31 in
- Max. Pull Tension: 16.5 lbs (7.48 kg)
- Bulk Cable Weight: 11 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL 1685 UL Loading, UL 1685 Vertical Tray, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Jacket and shield are bonded so both can be removed with automatic stripping equipment.
History
- Update and Revision: Revision Number: 0.449 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
