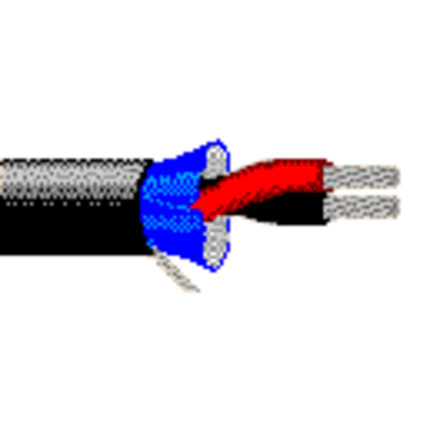

Belden 1508A B591000 Audio Cable, #24-2c, TC, O/A Foil, CM - Black, Matte, 1,000 ft Reel

$783.99
SKU:
1508A B591000
Shipping:
Calculated at Checkout
Color:
Black, Matte
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1508A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1508A B591000 Audio Cable, #24-2c, TC, O/A Foil, CM

Audio Cable, CM-Rated, 1-24 AWG stranded tinned copper pair with polyolefin insulation, Beldfoil® shield, drain, PVC jacket

Ordering Details

  • Manufacturer Part Number: 1508A B591000
  • Color: Black, Matte
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825116714
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.04 in mm; Color Code: Black & Red
  • Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+PVC); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.024 in (0.61 mm); Nom. Diameter: 0.131 in
  • Overall Cable Diameter (Nominal): 0.131 in

Electrical Characteristics

  • Nom. Conductor DCR: 28.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft (190 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 3.3 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 20.63 Ohm/1000ft (67.68 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C To +60°C
  • Stationary Min.: 1.31 in (33.3 mm); Installation Min.: 1.31 in
  • Max. Pull Tension: 16.5 lbs (7.48 kg)
  • Bulk Cable Weight: 11 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 UL Loading, UL 1685 Vertical Tray, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Jacket and shield are bonded so both can be removed with automatic stripping equipment.

History

  • Update and Revision: Revision Number: 0.449 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
