Description

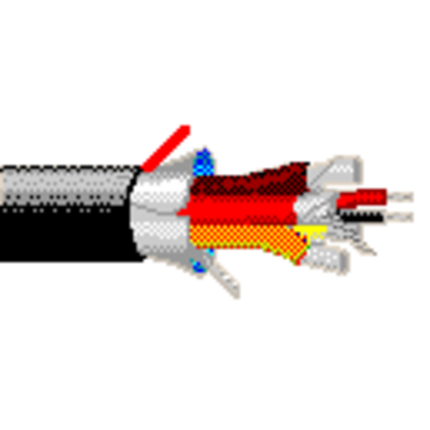

Belden 1510C B591000 Audio Snake Cable, #24-4pr, TC, Indiv. Shielded, CM
Audio Snake Cable, CM-Rated, 4-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Ordering Details
- Manufacturer Part Number: 1510C B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825116783
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.04 in (1.0 mm); Color Code: Black & Red
- Color Code: Brown, Red, Orange, Yellow; Notes: colors mentioned here is for inner Jacket
- Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+PVC); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.113 in (2.87 mm)
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.352 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.352 in
Electrical Characteristics
- Nom. Conductor DCR: 28.3 Ohm/1000ft; Nom. Inner Shield DCR: 20.63 Ohm/1000ft (67.68 Ohm/km); Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft (190 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 8.4 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 3.52 in (89.4 mm); Installation Min.: 3.52 in
- Max. Pull Tension: 49.9 lbs (22.6 kg)
- Bulk Cable Weight: 65 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.453 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
