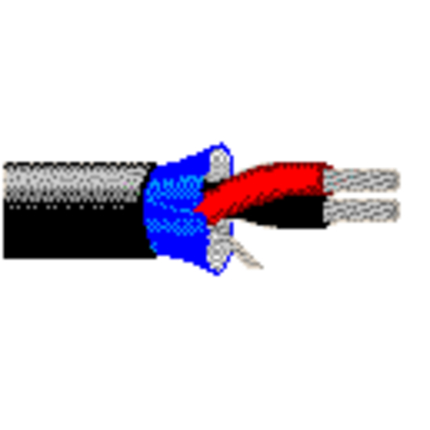

Belden 1266A 0101000 Audio Cable, #22-2c, TC, O/A Foil, CM
Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper conductors with polypropylene insulation, Beldfoil® shield, drain, PVC jacket
Ordering Details
- Manufacturer Part Number: 1266A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825110040
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Size: 22; Stranding: 7x30; Material: TC - Tinned Copper
- Material: PP - Polypropylene; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.0485 in (1.23 mm); Color Code: Black & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.02 in (0.51 mm); Nom. Diameter: 0.143 in (3.63 mm)
Electrical Characteristics
- Nom. Conductor DCR: 15 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 54 pF/ft (180 pF/m); Nom. Characteristic Impedence: 55 Ohm; Nom. Delay: 1.5 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 18 Ohm/1000ft (59 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C To +60°C
- Max. Pull Tension: 25 lbs (11 kg)
- Bulk Cable Weight: 14 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Unique design features lower capacitance and greater flexibility than standard audio pair constructions.
History
- Update and Revision: Revision Number: 0.421 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
