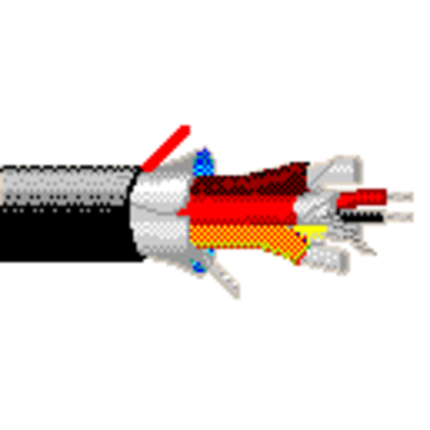

Belden 1509C B59500 Audio Snake Cable, #24-2pr, TC, Indiv. Shielded, CM - Black, Matte, 500 ft Reel

$1,185.99
SKU:
1509C B59500
Shipping:
Calculated at Checkout
Color:
Black, Matte
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1509C
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1509C B59500 Audio Snake Cable, #24-2pr, TC, Indiv. Shielded, CM

Audio Snake Cable, CM-Rated, 2-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil® shield, drain, flexible PVC jacket

Ordering Details

  • Manufacturer Part Number: 1509C B59500
  • Color: Black, Matte
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825116745
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Construction Details

  • Size: 24; Stranding: 7x32; Material: TC - Tinned Copper
  • Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.04 in (1.0 mm); Color Code: Brown, Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.113 in (2.87 mm)
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.034 in (0.86 mm); Nom. Diameter: 0.301 in; Ripcord: Yes

Electrical Characteristics

  • Nom. Conductor DCR: 23.3 Ohm/1000ft (76.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft (190 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 1.05 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -35°C To +75°C
  • Max. Pull Tension: 55.4 lbs (25.1 kg)
  • Bulk Cable Weight: 42 lbs/1000ft (63 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL1581 Vertical Tray^UL1685 FT4 Loading, Limited Smoke, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.411 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
