Description

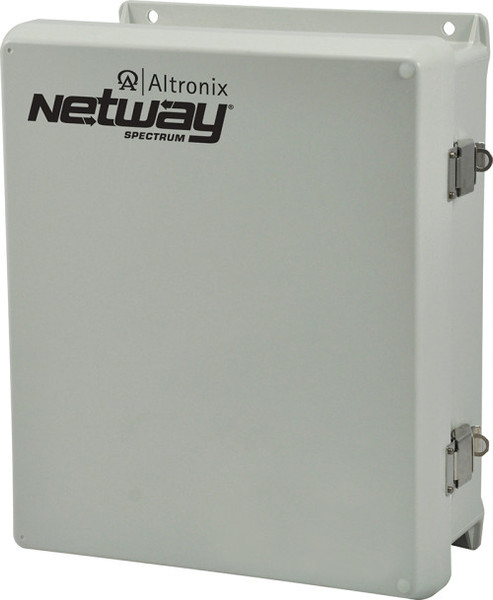

4-port Hardened 802.3bt 4PPoE Switch and Power Supply NEMA4/4X, IP66 rated Outdoor enclosure.
Altronix NetWaySP4BTWP Outdoor Hardened 4PPoE (802.3bt) Switch provides up to 180W distributed over four (4) PoE ports for high powered IP devices such as cameras and illuminators. This unit is equipped with two (2) 1Gb SFP (Fiber) ports for fiber connectivity to head end or additional PoE switch. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.
Input
Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
Fusing: 5A/250V.
Power Output
Maximum Power: Four (4) PoE ports rated at 90W each, 180W total power.
IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant.
Integral surge protection.
Fiber Ports
Two (2) Gigabit SFP ports.
Ethernet Ports
Four (4) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Battery Backup
Type: LiFePO4, sealed lead acid or gel type batteries.
Failover: Upon AC loss, instantaneous.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
VLAN
Multiple management VLAN assignment.
802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095.
LINQ Technology
Remote network management allows for camera/device reset and diagnostic monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Environmental
Temperature:
Operating (180W): - 30° C to 65° C ( - 22° F to 149° F).
Operating (150W): - 30° C to 75° C ( - 22° F to 167° F).
Storage: - 30° C to 85° C ( - 22° F to 185° F).
Relative Humidity: 85% +/- 5%
BTU/Hr (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
