Description
Switch, 4 Port PoE/PoE+, Enables 4 IP Devices over 1 structured cable, Input Power PoE/PoE+/Hi-PoE, Typically used with Netway1D

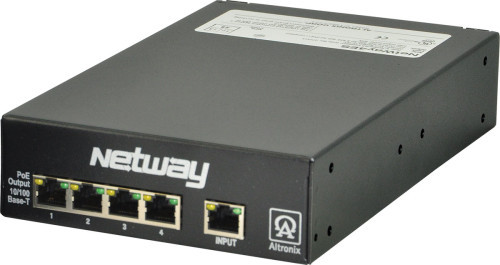

NetWay4ES is a 4-Port PoE/PoE+ switch which is designed for installation at the IDF (Intermediate Distribution Frame). NetWay4ES allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT-5e or higher structured cable. Power up to 60W is provided by NetWay1D midspan injector (included in NetWay4ESK Kit), or 30W by NetWay midspan/endspan, or any IEEE 802.3at standard midspan/endspan typically located at the MDF (Main Distribution Frame).
Input
Up to 60W is provided by NetWay1D midspan injector or 30W by NetWay midspan/endspan or any IEEE 802.3at standard midspan/endspan.
Power Output
Maximum power per port: PoE+ (30W).
Total maximum power options:
PoE+ (30W) from IEEE 802.3at standard midspan/endspan.
60W from Netway1D.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
LED Indicators
Yellow - IP Link status.
Green - 10/100Base-T/active.
Temperature
Operating:
60W: - 40° C to 75° C (-40° F to 167° F).
Greater than 60W: - 40° C to 50° C ( - 40° F to 122° F).
Storage:
- 40° C to 70° C ( - 40° to 158° F).
Relative Humidity 85% +/- 5%.
Operating Altitude
- 304.8 to 2000m.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Manual PoE shutdown (spring terminals).
IEC 320 - 3-wire grounded line cord (detachable).
