Product Overview

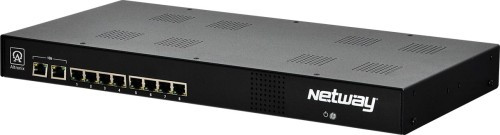

PoE Switch, 8-Port, 10/100/1000, 240W, Battery Charging, LINQ, 115/230, 1U
Altronix NetWay8E is an 8-port networked Managed Switch in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port, and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.
Input
115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2.0A.
Power
Unit supplies PoE output voltage (55V) and up to 30W max. full power per port.
Total power: 240W
IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
Short circuit protection.
Ethernet Uplink
Two (2) 1Gb uplink (100/1000 Mbps.)
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Ethernet
Eight (8) ports for cameras/edge devices over ethernet.
Wire type: 4-pair CAT5e and higher.
Speed: 10/100/1000 Mbps.
Functions
Programmble PoE shutdown for each port. Utilized to reset cameras/edge devices.
Auto detection and protection of legacy non-PoE cameras/edge devices.
Battery Backup
Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
LINQ Technology
SSL (Secure Socket Layer) security encryption.
User level security.
Built-in IP management allows for remote camera reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Temperature
Operating: - 20° C to 40° C ( - 4° F to 104° F).
Storage: - 20° to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 123 BTU/Hr.
Operating Altitude: - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
