Product Overview
Midspan Injector w/ 4 Port Switch Kit, 100Mbps, Enables 4 IP Devices over 1 structured cable, 115/220VAC, Includes Receiver and Transceiver/Switch

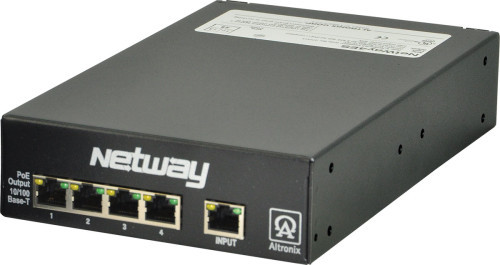

Altronix NetWay4ESK kit includes NetWay4ES and NetWay1D. NetWay4ES, a 4-Port PoE/PoE+ switch, is designed for installation at the IDF (Intermediate Distribution Frame). It allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT-5 or higher structured cable. NetWay1D midspan injector provides up to 60W of power and is typically located at the MDF (Main Distribution Frame).
Input
NetWay1D: 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
NetWay4ES: powered by Netway1D (included).
Power Output
Maximum power per port: PoE+ (30W)
Total maximum power: 60W.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
LED Indicators
NetWay1D:
AC Power.
Yellow - IP Link status, Green - 10/100Base-T/active.
NetWay4ES:
Yellow - IP Link status, Green - 10/100Base-T/active.
Temperature
NetWay1D:
Operating:
30W: - 30° C to 50° C (-22° F to 122° F).
60W: - 30° C to 40° C (-22° F to 104° F).
NetWay4ES:
Operating:
60W: - 40° C to 75° C (-40° F to 167° F).
Greater than 60W: - 40° C to 50° C (-40° F to 122° F).
Storage:
- 40° C to 70° C (-40° to 158° F).
Relative Humidity 85% +/- 5%.
Operating Altitude:
- 304.8 to 2,000m.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Manual PoE shutdown (Spring terminals).
IEC 320 - 3-wire grounded line cord (detachable).
