WAGO 859-805 DC/DC converter, input voltage 24 VDC, output voltage, 12 VDC, 0.5 A

$78.21
SKU:
859-805
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Wago orders require a $100 combined minimum order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

The WAGO 859-805 dC/DC converter features input voltage 24 VDC, output voltage, 12 VDC, 0.5 A.

Specifications

  • Nominal input voltage [V]: 24 VDC
  • Input voltage range: 15 … 30 VDC
  • Nominal mains frequency range: 0 Hz
  • Mains failure hold-up time: ≥ 0.5 ms
  • Nominal output voltage [V]: 12 VDC
  • Output voltage range: DC 12 V
  • Nominal output current Io nom: 0.5 A
  • Residual ripple: ≤ 20 mV
  • Switching frequency: 20 kHz (nominal)
  • Overload behavior: Temporary no damage (short circuit of the output for 1 minute)
  • Signaling: 1 x LED
  • Efficiency (typ.): 85 %
  • Internal fuse: TVS diode
  • Protection class: III
  • protection rating: IP20; per EN 60529
  • Reverse voltage protection: Yes
  • Pollution degree: 2
  • Series operation: No
  • Connection Data — Number of jumper slots: 2
  • Connection 1 — Connection technology: CAGE CLAMP®
  • Connection 1 — WAGO connector: WAGO 859 Series
  • Connection 1 — Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 — Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 — Strip length: 5 … 6 mm / 0.2 … 0.24 inches
  • Width: 6 mm / 0.236 inches
  • Height: 91 mm / 3.583 inches
  • Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
  • Housing design: Rail-mount terminal block
  • Mounting type: DIN-35 rail; DIN-35 rail
  • Color: gray
  • Weight: 35 g
  • Ambient temperature (operation): -25 … +55 °C
  • Operating altitude (max.): 2000 m
  • Conformity marking: CE

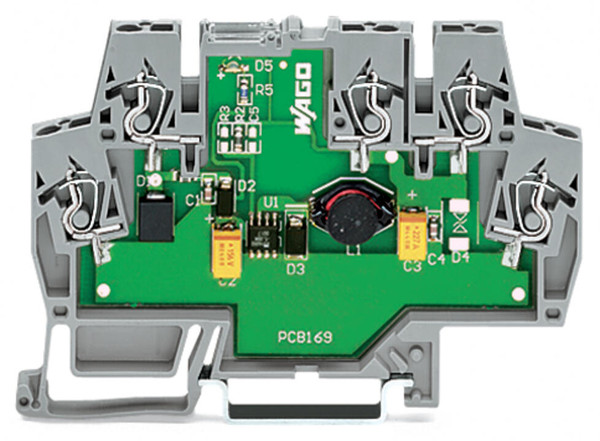

Image shown is representative. Refer to the product specifications for the exact configuration.
