Product Overview
Overview

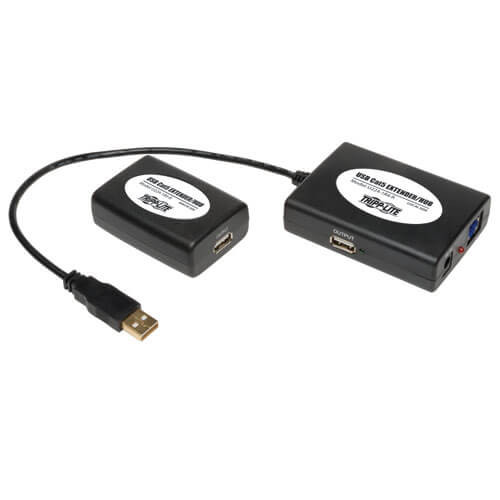

Tripp Lite's U224-1R4-R is a kit that includes a 3-port USB 2.0 local transmitter unit, and a 1-Port USB 1.1 remote receiver unit. Connect up to 3 USB 2.0 devices to the local trasnmitter, while extending an additional USB 1.1 peripheral up to 150-ft. (45.72 m) from your computer. Simply plug the transmitter into the USB port on your computer, connect your USB peripherals, and run Cat5e/Cat6 cable up to 150-ft. (45.72 m) to the remote receiver unit and connected device. Plug-and-play; no software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Local transmitter unit features 3 USB 2.0 ports
- Remote receiver unit features 1 USB 1.1 port
- Locate a USB 1.1 peripheral up to 150-ft. (45.72 m) from your computer
- Uses readily available Cat5e/Cat6 patch cable
- Plug-and-play; no software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Package Includes
- 3-port USB 2.0 local transmitter unit
- 1-port USB 1.1 remote receiver unit
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
- Owner's manual
Specifications
OVERVIEW
| UPC Code | 037332146694 |
| Product Type | Hub |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A |
| Technology | USB 2.0 (High Speed) |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (4) USB A (FEMALE) |
| Data Ports Details | (4) USB-A - USB 2.0 |
PHYSICAL
| Color | Black |
| Receiver Unit Height (in.) | 0.9 |
| Receiver Unit Width (in.) | 1.8 |
| Receiver Unit Depth (in.) | 2.6 |
| Shipping Dimensions (hwd / in.) | 2.30 x 5.90 x 8.90 |
| Shipping Weight (lbs.) | 0.80 |
| Transmitter Unit Depth (in.) | 3.3 |
| Transmitter Unit Height (in.) | 0.9 |
| Transmitter Unit Width (in.) | 2.4 |
CONNECTIONS
| Ports | 4 |
| Side A - Connector 1 | USB A (MALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Side B - Connector 1 | (4) USB A (FEMALE) |
| Side B - Connector 2 | RJ45 (FEMALE) |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
