Product Overview
Overview

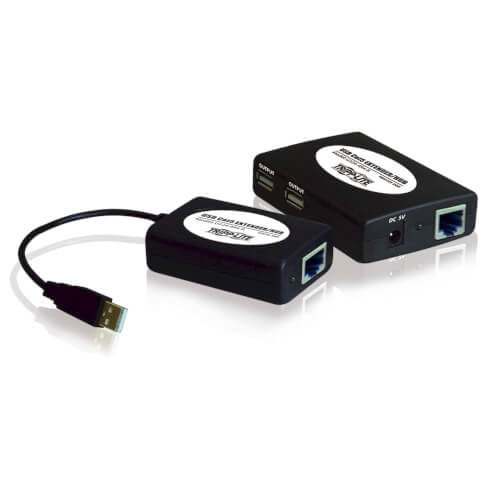

Tripp Lite's 4-Port USB 1.1 over Cat5 extender hub allows USB peripherals to be located up to 150-ft. (45.72 m) from your computer. Simply plug the transmitter into the USB port on your computer, connect your USB peripherals, and run Cat5e/Cat6 cable up to 150-ft. (45.72 m) to the remote receiver unit and connected devices. Plug-and-play; no software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Locate 4 USB 1.1 peripherals up to 150-ft. (45.72 m) from your computer
- Uses readily available Cat5e/Cat6 patch cable
- Plug-and-play; no software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Package Includes
- Local transmitter unit
- 4-Port remote receiver unit
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft.)
- Owner's manual
Specifications
OVERVIEW
| UPC Code | 037332146687 |
| Product Type | Hub |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 4.5 ft. |
| Technology | USB 2.0 (High Speed) |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (4) USB A (FEMALE) |
| Data Ports Details | (4) USB-A - USB 2.0 |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
POWER
| External Power Supply Input Specs (V / Hz / A) | 100-240V, 50/60Hz, 0.35A |
| External Power Supply Output Specs (V / A) | 5V, 2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Cord Length (m.) | 1.5 |
| DC Barrel Plug | OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve |
| External Power Supply Certifications | CE; FCC; UL |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Red - Connection; Green - Activity |
PHYSICAL
| Color | Black |
| Material of Construction | Plastic |
| Receiver Unit Height (in.) | 0.9 |
| Receiver Unit Width (in.) | 2.4 |
| Receiver Unit Depth (in.) | 3.3 |
| Shipping Dimensions (hwd / in.) | 2.30 x 8.90 x 5.90 |
| Shipping Weight (lbs.) | 0.75 |
| Transmitter Unit Depth (in.) | 2.6 |
| Transmitter Unit Height (in.) | 0.9 |
| Transmitter Unit Width (in.) | 1.8 |
CONNECTIONS
| Ports | 4 |
| Side A - Connector 1 | USB A (MALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Side B - Connector 1 | (4) USB A (FEMALE) |
| Side B - Connector 2 | RJ45 (FEMALE) |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
